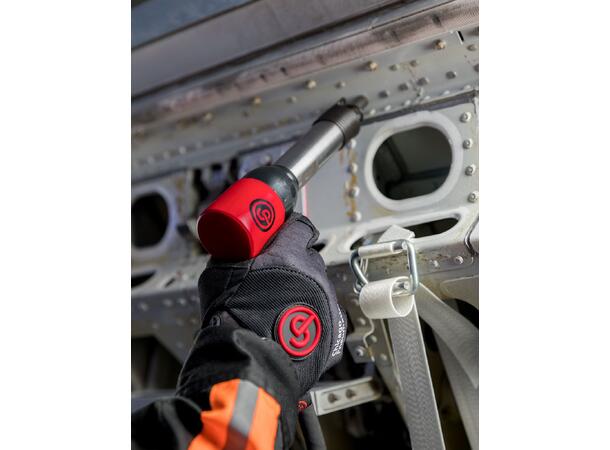

Take advantage of the CP rivet hammers
solution covering the most frequent riveting application in metal
structure for aerospace.

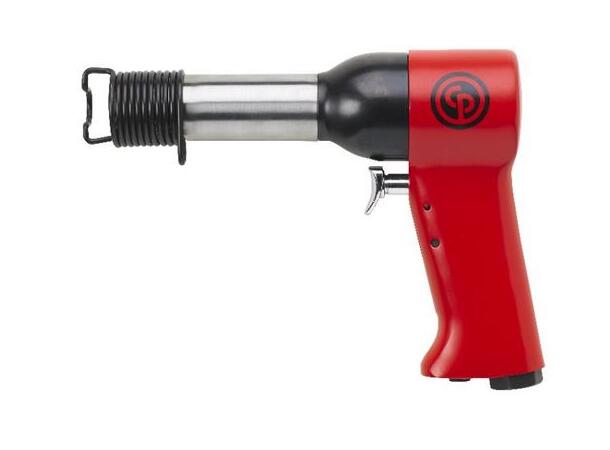

The CP42 rivet hammer series is defined by 7
models (1X,2X,3X,4X,5X,7X,9X) . Country of origin is TW. Customs tariff is 84671900
Technical Specifications
Design & Functions
Air inlet thread size (in)1/4
Air inlet thread type NPT
Chisel shank diameter (in) 0.498
Chisel shank diameter (mm) 12.7
Max dynamic air working pressure 6.3 bar
Max rivet size aluminium (in) 1/4
Max rivet size aluminium (mm) 6.4
Max rivet size steel (in) 3/16
Max rivet size steel (mm) 4.8
Min hose diam (16 ft hose length) 0.38 in
Min hose diam (5 m hose length) 9.5 mm
Uncertainty vibration-K 4.5 m/s²
