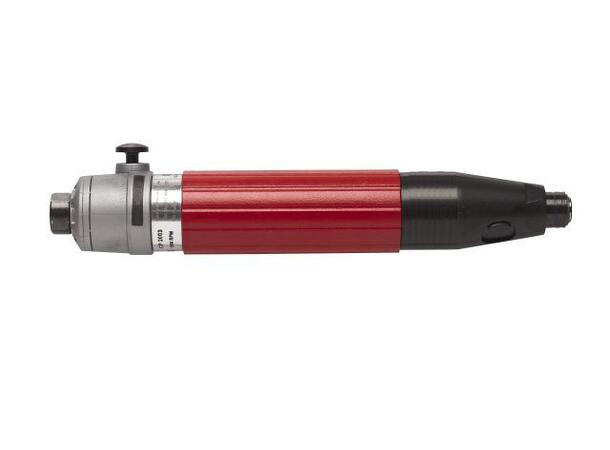

CP2003 Skrutrekker

Rett, shut-off, 0,4-1,5Nm

Varenr: 6151922003
CP2003 Skrutrekker Rett, shut-off, 0,4-1,5Nm CP2003 Skrutrekker Rett, shut-off, 0,4-1,5Nm
13 554,-
Bestillingsvare (4 dager)

CP2003 Skrutrekker, rett



Push to start operation, ideal for continuous operation. Shut off clutch. Quick change reverse operation Reduces time during rework

Benefits

Compact & comfortable for production operations

Reliable & Accurate for various fastenings
Excellent for intensive & precise applications

Features

Accurate Shut-off clutch
screwdriver
Straight Push-to-start operation
One-hand reverse button
Fast and narrow torque range
Low noise level

ModelCP2003
Part number6151922003
Air inlet thread size1/8 BSP "
Bit holderQuick Change Hexagonal Female
Clutch typeShut off
Diameter30 mm1.18 "
Free speed1100 rpm
Free speed air consumption4 l/s8.5 cfm
Handle typeStraight
Length197 mm7.7 "
Max working torque1 1/2 Nm1.106 ft.lbs
Min working torque0.4 Nm0.295 ft.lbs
Min. hose size10 mm3/8 "
Net weight0.4 kg0.9 lb
Output drive1/4 "
Screw type hardyes
Screw type softyes
Screw type very softyes
Sound Power84 db(A)
Sound pressure73 db(A)
Vibration<2.5 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)- m/s²
