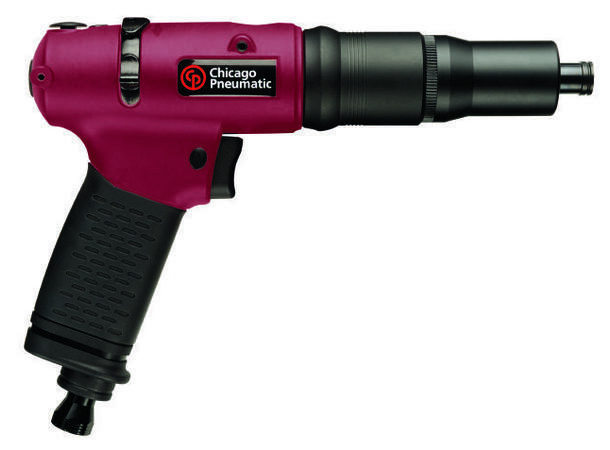

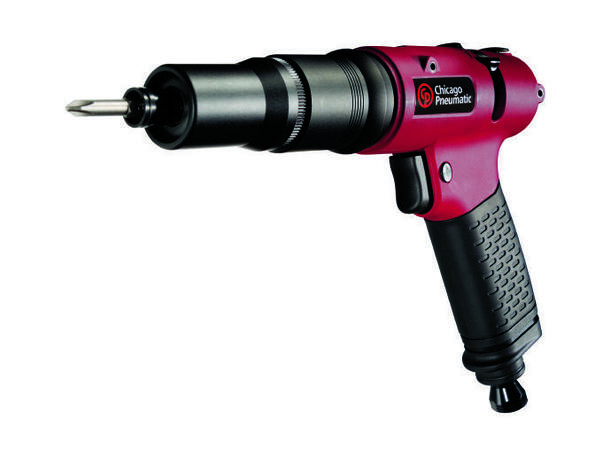

CP2611
Skrutrekker
Productive & Accurate Pistol
Shut-off
Benefits
Perfect for various moderate to
intensive assembly line
Versatile thanks to wide & high torque
Limited Noise level for operator comfort
Excellent accuracy & easy torque adjustment all applications
Features
Automatic Shut-off clutch
screwdriver
Pistol shape with Progressive trigger
One-hand reverse button
3 air inlets for versatile access
Keyless Torque setting adjustment
Color rings for identification
| Model | CP2611 |
| Part number | 6151922611 |
| Air inlet thread size | 1/4 " |
| Bit holder | Quick Change Hexagonal Female |
| Clutch type | Shut off |
| Diameter | 23 mm |
| Free speed | 1000 rpm |
| Free speed air consumption | 10 l/s |
| Handle type | Pistol |
| Height | 175 mm |
| Length | 235 mm |
| Max working torque | 7.5 Nm |
| Min working torque | 1 Nm |
| Min. hose size | 10 mm |
| Net weight | 1.1 kg |
| Output drive | 1/4 " |
| Screw type hard | yes |
| Screw type soft | yes |
| Screw type very soft | yes |
| Sound Power | 91 db(A) |
| Sound pressure | 80 db(A) |
| Vibration | <2.5 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | - m/s² |
