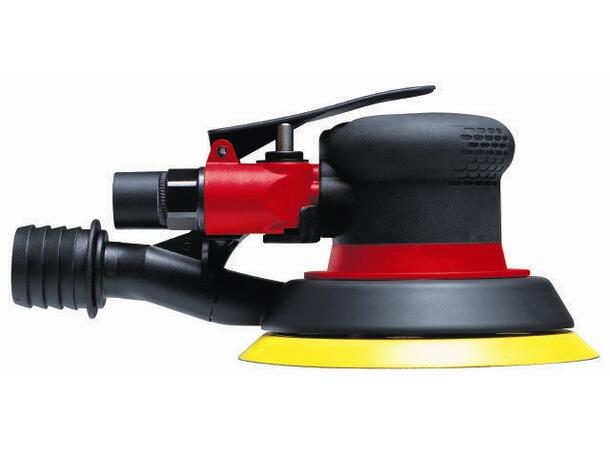

CP3514 5 PALM Slipemaskin
Ergonomic and powerful
Benefits
Operator comfort with ergonomic palm shape
Productivity increased with low vibrations level
Powerful and ergonomic palm shape for vertical and horizontal applications
3/16" (5 mm): great for surface preparation from body filler to paint primer
Features
Central Vacuum (CV) model in Hook & Loop Pad
5" (125 mm) random orbital palm sander
3/16" (5 mm) orbit
Powerful 0.3 hp (210 W) motor
Soft grip, tear drop design for perfect control
Low noise level
Shut-off and speed control switch
| Model | CP3514 |
| Part number | 6151933514 |
| Actual air consumption | 453 l/mn |
| Air inlet thread size | 1/4 " |
| Average air consumption | 227 l/mn |
| Free speed | 12000 rpm |
| Free speed air consumption | 9.2 l/s |
| Height | 105 mm |
| Height over spindle | 105 mm |
| Length | 200 mm |
| Min. hose size | 10 mm |
| Net weight | 0.79 kg |
| Orbit diameter | 5 mm |
| Pad diameter | 125 mm |
| Pad holes number | 6 |
| Pad type Hook & Loop | yes |
| Pad type PSA | no |
| Paper size | 125 mm |
| Power | 210 W |
| Self vacuum | yes |
| Sound Power | 87.2 db(A) |
| Sound pressure | 81 db(A) |
| Spindle thread | 5/16-24 |
| Vacuum | Central vacuum |
| Vibration | 3 m/s² |
| Vibration ISO | ISO-28927-3 |
| Vibration uncertainty (K) | 1.3 m/s² |
| Width | 150 mm |
