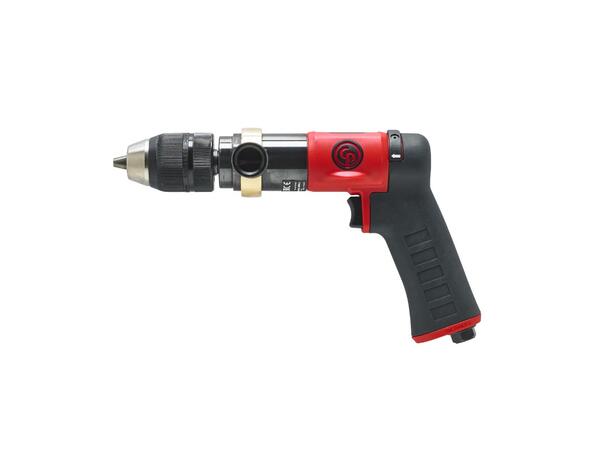

CP9791C Dril
Kraftig 13mm Drill med hutigchuck, reversibel
Good general speed tool, suitable for many applications. Large capacity chuck accommodates larger drill bits. Industrial keyless chuck, slow speed, ideal for large hole drilling. Reversible
Benefits
High Comfort
Ergonomics
Excellent Speed Control
High resistance to stalls
Great handling
Operator friendly
High durability
Supplied with high quality industrial Jacobs® chucks for longer use
- Keyless
Features
Composite housing with thermoplastic rubber handle grip
Wings on right & left sides to guide the forefinger
Large teasing trigger and progressive valve allowing more control to start holes
Low speed gear box
Flat back part for better pushing action while drilling and tapping
Reverse lever on the top for easier access
handle exhaust allowing the air to flow away from the operator
Supplied with high quality industrial Jacobs® chucks for longer use
- Keyless
Excellent for drilling, honing, reaming and hole sawing
| Model | CP9791C |
| Part number | 8941097910 |
| Air inlet thread size | 1/4 " |
| Average air consumption | 3.25 l/s |
| Box dimensions | 276x168x58 mm |
| Chuck capacity | 13 mm |
| Collet / spindle size | |
| European Directives | 2006/42/EC (17/05/2006) |
| European Sound standard | ISO 15744 |
| European Standards | EN ISO 11148-3:2012 |
| Free speed | 840 rpm |
| Free speed air consumption | 13 l/s |
| Height | 150 mm |
| Length | 265 mm |
| Min. hose size | 10 mm |
| Net weight | 1.4 kg |
| Over carton | 1200x800x630 mm |
| Power | 350 W |
| Side to center | 49 mm |
| Sound Power | 99.3 db(A) |
| Sound pressure | 88.3 db(A) |
| Stall torque | 14 Nm |
| Vibration | <2.5 m/s² |
| Vibration ISO | ISO-28927-5 |
