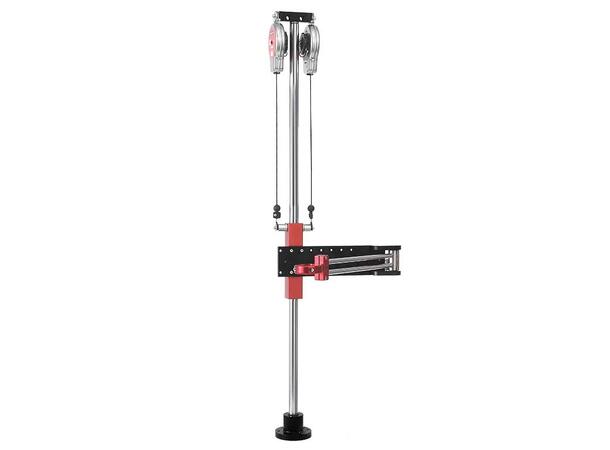

D53-25S Folded arm w/clamp 28,5 - 41mm

Max 25Nm / 2,5kg

Varenr: 6158107080
D53-25S Folded arm w/clamp 28,5 - 41mm Max 25Nm / 2,5kg D53-25S Folded arm w/clamp 28,5 - 41mm Max 25Nm / 2,5kg
24 318,-
Bestillingsvare (3 dager)

D53-25S Folded arm w/clamp



Part number6158107080
ModelD53-25S
Ergonomicsyes
BenefitsGreater working area covered
Takes away the tool torque & weight from the operator wrist
Improves quality of work and torque accuracy
FeaturesUp to 25Nm
90 degrees tool clamp interface for straight or pistol grip tools
Universal clamp included (28,5mm - 41mm)
2 balancers 5DU included
Max torque25 Nm
Max. tool weight2.5 kg
Arm equipped with2 x 5DU
Tool clamp diameter28,5 - 41 mm

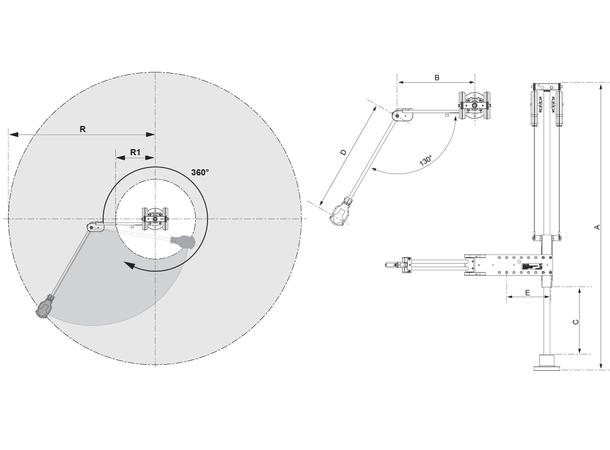

Dimension A1132 mm
Dimension B296 mm
Dimension C580 mm
Dimension D470 mm
Dimension E168 mm
Radius R685 mm
Radius R1183 mm
