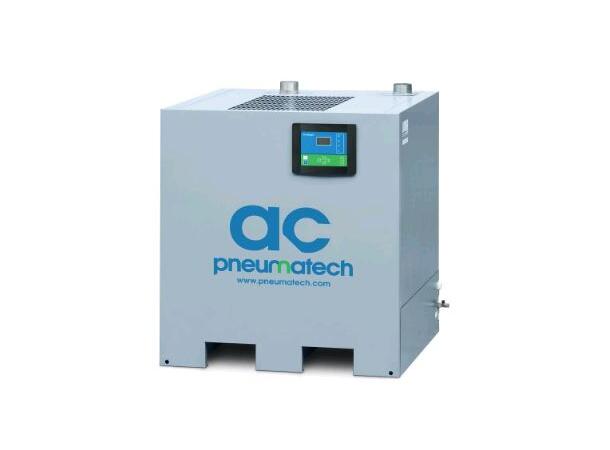

Pneumatech AC1250 kjøletørke

AC 650-2100 is Pneumatech’s premium refrigeration dryer range
at higher flows: from 1120 up to 3636 m³/hr (657-2141 cfm).
As in the small AC range, operating costs are significantly
reduced thanks to the energy saving and flow switch algorithms,
the zero-loss drains, the low pressure drop over the heat
exchangers and the combination of rotary compressors and
R410A refrigerant. The refrigeration cycle is further optimized in
all working conditions by making use of the automatic expansion
valve & electronic hot gas bypass valve.
From AC1600 onwards, dedicated variable speed (VSD) variants
have been added to the range. The VSD controller incorporated
in these dryers matches the energy consumption to the actual
compressed air demand. This reduces energy used by as much
as 70%, compared to conventional dryers. It works by varying the
speed of the compressor, hereby ensuring a stable dew point.
The PurelogicTM is installed as standard on all dryers: it ensures
maximum reliability by monitoring the most important parameters
of the dryer and offers impressive control and monitoring
capabilities, like internet-based visualization.
The entire range is available in both air-cooled and water-cooled
versions.

Tekniske data: AC 1250 kjøletørke
Kapasitet: 36600 l/min - 610 l/sek - 2196 m3/time
Motoreffekt 4,2kw
Elektrisk anslutning: 400V/50Hz - 3 fas
Max arbeidstrykk: 16bar
Kjølemedie: R410A
Anslutning: DN100
Mål: LxBxH: 1245x1083x1580mm
Vekt: 350kg
