Features & Benefits
Advanced energy management for
lowest operating costs
• Compressor synchronization
• Purge nozzle optimization
• PDP control (optional)
Best-in-class performance thanks to
unique valve and exhaust design
(patent pending)
• Lowest pressure drop during drying
• Lowest purge loss by ensuring maximum
purge air expansion during regeneration
Low noise levels during purge and blow-off
High-quality, high-efficient desiccant,
selected for the right application
• PDP -20°C/-3°F &• PDP -40°C/-40°F:
activated alumina
• PDP -70°C/-94°F: molecular sieves
Spring-loaded desiccant, minimizing
the risk of crushing
Counter-current regeneration for optimal
energy efficiency and guaranteed dry air
Designed for transportability & mountability
• Wall-mounting kit for PH 55-190 HE
(optional)
Optimal control and monitoring thanks
to the PurelogicTM controller (optional)
Desiccant bags for easy service from the top



General Specifications
Heatless adsorption dryers:
extruded profile design
Dew points achievable:
-20°C/-3°F; -40°C/-40°F & -70°C/-94°F
Pressure range: 4-14 barg/58-203 psig
Ambient temperature range:
1-45°C/34-113°F
Inlet temperature range: 1-50°C/34-122°F
(For temperatures up to 60°C/140°F:
see HIT option)
Power supply: 230VAC 50/60Hz
& 115VAC 50/60Hz

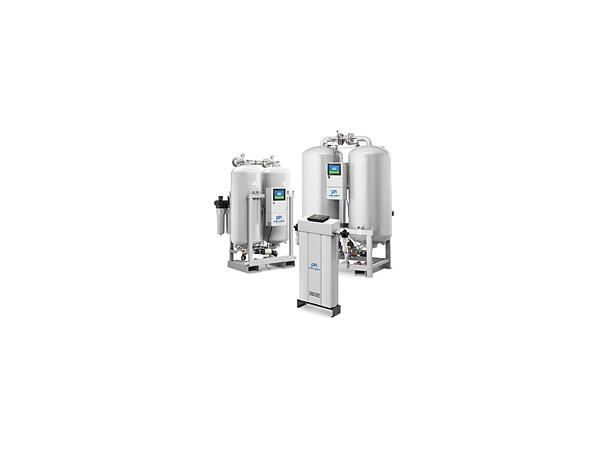

Incorporating high-quality components, PH heatless adsorption
dryers provide you with clean, dry air to extend the life of your
equipment and products. Heatless adsorption dryers use dry,
expanded purge air to remove moisture from the desiccant
material.
PH 55-550 HE adsorption dryers are available in 3 PDP variants:
-20°C/-4°F , -40C°/-40°F and -70°C/-94°F, each optimized to
provide the lowest purge loss. The unique manifold (patent
pending) includes pilot air controlled 3/2-way valves, which switch
fast and reliably. The pressure drop over the valves is reduced to
a minimum. This does not only result in a low pressure drop over
the dryer, but also ensures maximum purge air expansion during
regeneration. The latter makes that the purge consumption of the
dryers has been reduced significantly.
The desiccant is spring-loaded and housed in a robust extruded
aluminum body, which can operate up to 14 barg/203 psig
(fatigue load). The dryers are equipped with a mounted pre-filter
and after-filter as standard and can also be wall-mounted with a
specially designed wall-mounting kit (optional).
Operating costs are optimized at all times thanks to the availability
of compressor synchronization and purge nozzle optimization
as standard and PDP control as option. The full machine status
can be checked on the display of the controller and the vessel
pressure gauges on the unit.
The controller indicates whether power supply is connected,
towers are pressurized, valves are functioning properly or
preventive maintenance needs to be done. In case the optional
PDP control is connected, the PDP value can monitored from the
display. Alarms and warnings can also be triggered remote with
the available voltage-free contacts.
Optionally the PurelogicTM can be used as central brain of the
adsorption dryer.



Specifications:

Air flow 195 l/s - 702 m3/hr

Regeneration: 17%

Connection: G 1 1/2"

Pressure drop at max flow: 0,278bar

Filters included: TF8 CHE + TF 8 S HE

Height: 1835mm

Width: 907mm

Length: 734mm

Mass: 389 kg
