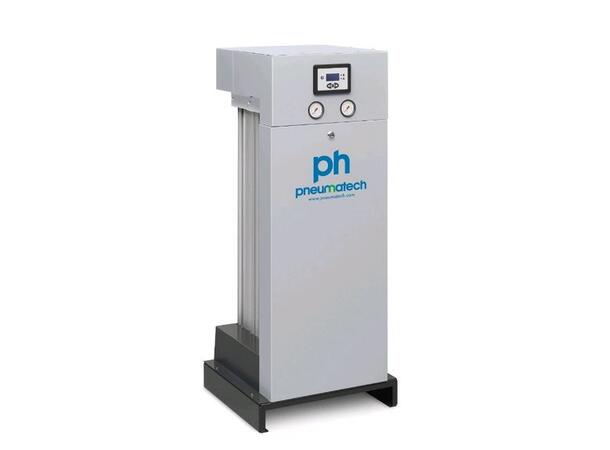

OBS! Bildet er illustrativt - virkelig produkter avviker noe i utseende.



Incorporating high-quality components, PH heatless adsorption
dryers provide you with clean, dry air to extend the life of your
equipment and products. Heatless adsorption dryers use dry,
expanded purge air to remove moisture from the desiccant
material.
PH 2-45 HE adsorption dryers are capable of drying air to a PDP
of -70°C/-94°F, simply by reducing the flow, thanks to the use
of carefully selected molecular sieves. The desiccant is housed
in a robust extruded aluminum body, which can operate until
16 barg/232 psig (fatigue load). The dryers are equipped with
a mounted pre-filter and an integrated after-filter as standard,
can be installed vertically and can also be wall-mounted with a
specially designed wall-mounting kit (optional).
The controller ensures the lowest operational costs thanks to
compressor synchronization and the optional PDP control. LED’s
on the controller indicate whether power supply is connected,
towers are pressurized and solenoids are functioning properly.
It also provides with preventive maintenance information. Alarms
can also be triggered remote thanks to the available voltage-free
contact.



Features & Benefits
Advanced energy management
for lowest operating costs
• Compressor synchronization
• Purge nozzle optimization (optional)
• PDP control (optional)
High-quality, high-efficient desiccant,
selected for the right application –
molecular sieves
Spring-loaded cartridges, hence
minimizing the risk of crushed desiccant
Counter-current regeneration for optimal
energy efficiency and guaranteed dry air
Designed for transportability
& mountability
• Dryer can be installed vertically
or horizontally
• Wall-mounting kit (optional)
In & outlet can be reversed
Low noise levels while purging
High reliability and robust design
General Specifications
Heatless adsorption dryers:
extruded profile design
Dew points achievable:
-40°C/-40°F & -70°C/-94°F
Pressure range: 4-16 barg/58-232 psig
Ambient temperature range:
1-50°C/34-122°F
Inlet temperature range:
1-60°C/34-140°F
Power supply: 230VAC 50/60Hz



PH25HE

Flow 12 l/sek - 43 m3/time

Luftforbruk 18%

Anslutning: 1/2"

Trykkfall v/ max fløde: 0,125bar

Filter inkludert TF 1 C HE

Vekt: 29 kg

Mål: 1015x320x149mm
