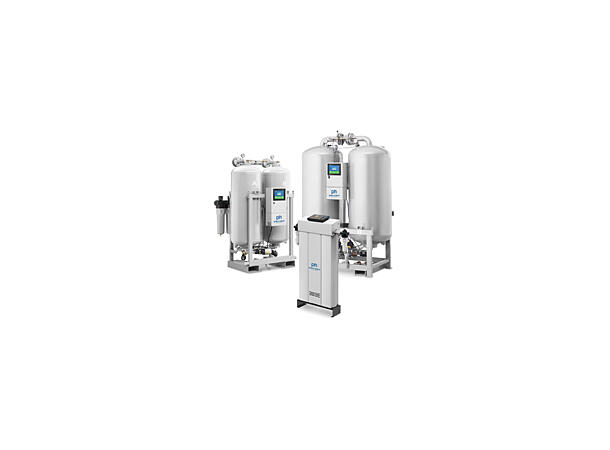

The Pneumatech PH HE adsorption dryer has always earned its High-Efficiency label. Its new models with

structured desiccant take these energy savings to a new level. In fact, thanks to their groundbreaking solides

desiccant, the newest additions to the PH HE range offer the lowest total cost of ownership on the market.

They also set new standards in reliability, low maintenance requirements and versatility for truly

superior dryer performance.

Features and benefits:

General Specifications

• Structured desiccant offers highly efficient air flow and regeneration

• Stable low pressure dew point

• 40% longer desiccant lifetime

• Easy desiccant maintenance

• No desiccant dust that can cause dryer failures and compromise production

• Pneumatic valves add robustness in demanding environments

• Vertical or horizontal installation

• Purge nozzle optimization

• PDP control (optional for DC1 controller)

• Wall-mounting kit (optional for Simplex models)

• Heatless adsorption dryers: extruded profile design

• Dew points achievable: -20°C/-5°F, -40°C/-40°F

• Pressure range: 4-14 barg/58-203 psig

• Ambient temperature range: 2-45°C/36-113°F

• Inlet temperature range : 2-60°C/ 36-140°F

• Power supply: 230VAC 50/60Hz & 115VAC 50/60Hz

Solid desiccant:

PureLogicTM Touch controller:

Options: • PDP control • Wall-mounting kit

Pneumatic valves: enhance reliability in tough conditions

• Much more efficient air flow reduces energy costs

• Evenly distributed air flow extends desiccant lifetime

• 40% longer lifetime

• No desiccant dust to filter out

• Fast and easy maintenance

• Easy to use

• Optimizes performance and efficiency of the dryer

• Connectivity to DCS, SCADA and PLC systems available

Spesifikasjoner

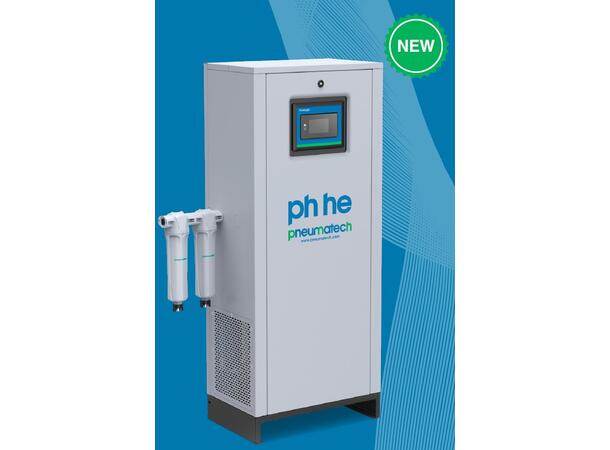

Modell: PH90HE

Kapasitet: 40 l/sek - 144 ,3/time

Anslutningsgjenger 1"

Trykkfall: 0,08 bar v/ max flow

Høyde: 1205mm

Bredde: 904mm

Dybde: 394mm

Vekt: 110 kg

Filteroppsett: FG49 finfilter & FC49 Superfin filter
