CPPG14AS 50Hz
Teknisk informasjon
| Model |
CPPG14AS |
| Part number |
8170022275 |
|
Generator Data
|
|
| Rated Frequency |
50 Hz |
| Rated Voltage |
400 / 230 V |
| Nominal power output |
11,9 kVA |
| Peak power output |
13,9 kVA |
| Power factor cos Phi |
0,8 |
| Fuel tank capacity |
24 l |
| Fuel autonomy at nominal power |
4,3 h |
| Sockets configuration |
1 x SCH +
2 x 3P16A +
1 x 5P16A |
|
Engine
|
|
| Model |
Honda GX630 Gasoline |
| Engine Exhaust Regulation |
Stage V |
| Nominal speed |
3000 rpm |
| Power output |
12 kWm |
| Displacement |
688 cm³ |
| Starter type |
Electric |
|
Alternator
|
|
| Power |
11,5 kVA |
|
Noise Level
|
|
| Sound pressure level (LpA) at 7m |
61 db(A) |
| Sound power level (LwA) |
89 db(A) |
|
Weight and dimensions
|
|
| Length |
990 mm |
| Width |
602 mm |
| Height |
826 mm |
| Width |
190 kg |

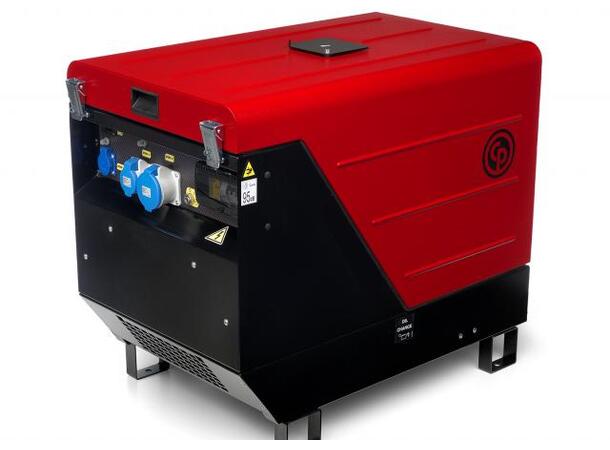

NB! Bildet er kun en illustrasjon
