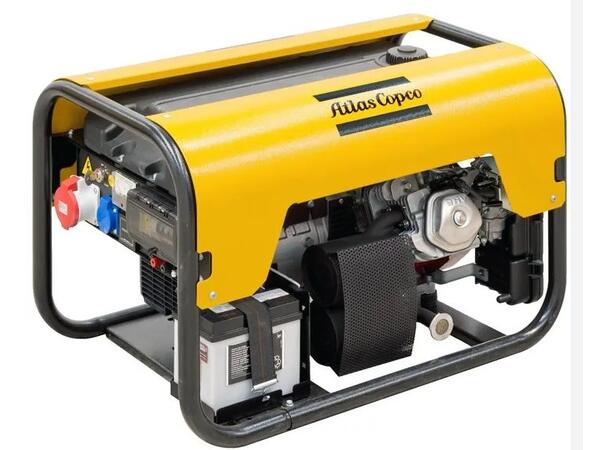

Strømaggregat med snorstart



Primær: 5,6 kW - 7,0 kVA

Standby: 6,6 kW - 8,3 kVA



Forbruk, drivstoff: 75% belastning: 2,15 l/time - 100% belastning 2,86 l/time





Voltage (V) 400
Frequency (Hz) 50
Gasoline
Performance class G1
Acoustic pressure LpA a 7 m (dB(A) @7m) 69
Acoustic power LwA (dB(A)) 97
Length (L) (mm) 729
Width (W) (mm) 500
Height (H) (mm) 536 Power factor 0.8
Weight (kg) 81
Fuel tank capacity (l) 11
Wheels and handles Optional



• CE noise compliance
• Large fuel tank • Sockets
• Engine Oil Guard 0
• Protective top cover 0
• Thermal protection 0
• ON/OFF Fuel valve 0
SCHUKO 230V 16A IP54 1
2P+T CEE 230V 16A IP44 1
3P+N+T CEE 400V 16A IP44 1
• Wheel kit
• Automatic Voltage Regulation (A)
• Differential circuit breaker, hourmeter (D)
The generator set has a CE Marking that includes the following directives:
¦ 2006/42/CE Machine Safety.
¦ 2014/35/CE Low Voltage.
¦ 2014/30/CE Electromagnetic compatibility.
¦ 2005/88/CE Noise emission in the environment by equipment for use outdoors.
¦ 2016/1628/CE Gases and contaminating particles emissions.
Prime Rating
Standby
Grupos Electrógenos Europa, S.A. is a certified company with ISO 9001, ISO 14001, OHSAS 18001 and PECAL
Atlas Copco reserves the right to modify any characteristic of their equipment without prior warning.
All products are designed and engineered in Zaragoza Competence Center
Weight and dimensions of a standard generator set.
Non-contractual document
Grupos Electrógenos Europa, S.A. DISTRIBUTED BY:
Central Offices:
Polígono pitarco II - Parcela 20
50450 Muel (Zaragoza) España
Tel.: +34 976 145 432
Fax.: +34 976 145 431
Please, contact your local Atlas Copco Dealer for more information
8170023179 QEP 8 HP S5 50 400-230 2019EN4.0
Definitions
PRIME POWER: Electrical power data available at a variable load without limits of hours per year. An overload of 10 % is allowed for 1 hour of every 12. In accordance
with ISO 8528/1 (2005) – PRP
STANDBY POWER: Electrical power data at variable load in an emergency in accordance with standard ISO 8528/1 (2005) – ESP. Overloads of emergency power are
not allowed.
Options
Regulations:
Sockets configuration
