CPPG 8P
Teknisk informasjon
| Model |
CPPG 8P |
| Part number |
8170022275 |
|
Generator Data
|
|
| Rated Frequency |
50 Hz |
| Rated Voltage |
400 / 230 V |
| Nominal power output |
7 kVA |
| Peak power output |
8,3 kVA |
| Power factor cos Phi |
0,8 |
| Fuel tank capacity |
18 l |
| Fuel autonomy at nominal power |
6,3 h |
| Sockets configuration |
1 x Shuko 1 fas 1 5p 16 Amp 400V |
|
Engine
|
|
| Model |
Honda GX390 |
| Power output |
7,7 kWm |
| Displacement |
389 cm³ |
| Starter type |
Electric |
|
Alternator
|
|
| Power |
7 kVA |
|
Noise Level
|
|
| Sound pressure level (LpA) at 7m |
69 db(A) |
| Sound power level (LwA) |
97 db(A) |
|
Weight and dimensions
|
|
| Length |
842 mm |
| Width |
523 mm |
| Height |
557 mm |
| Width |
92 kg |

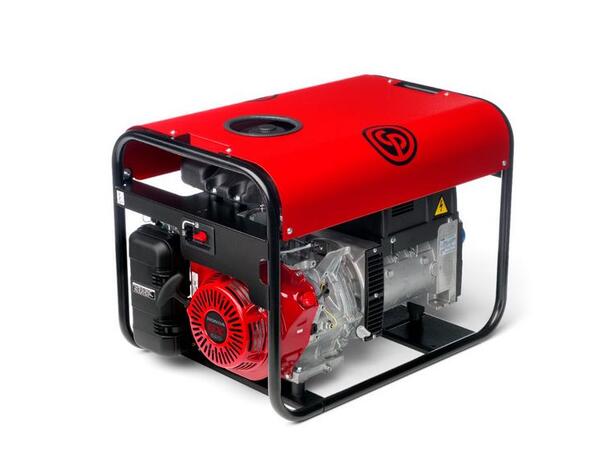

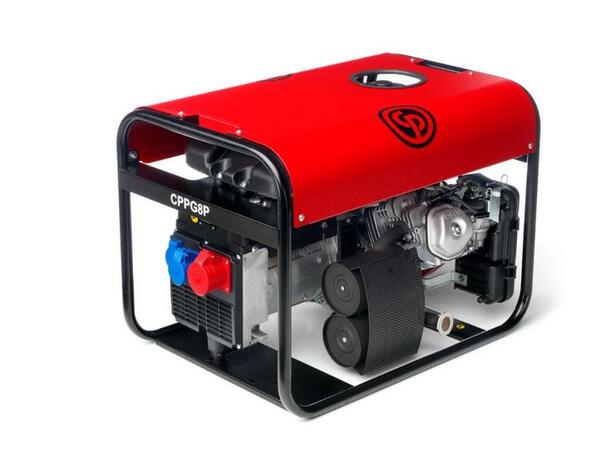

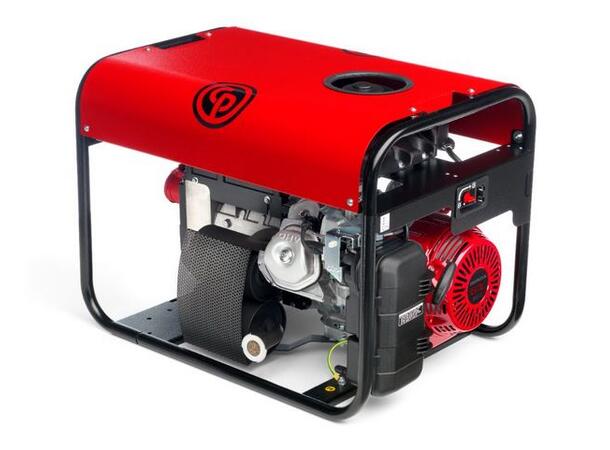

NB! Bildet er kun en illustrasjon
