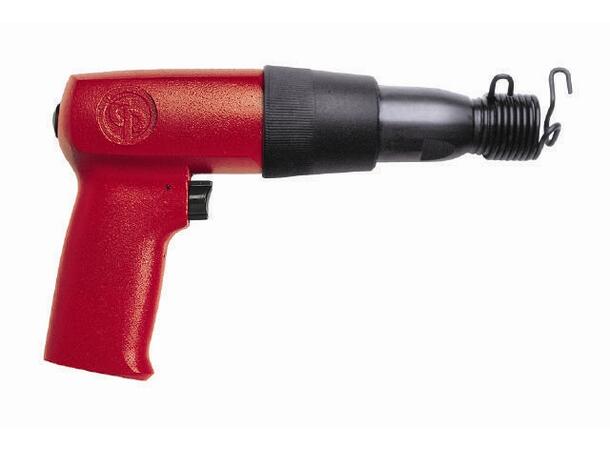

CP7110
Meiselhammer
Vibrasjonsdempet
meiselmaskin for bil og karosseri
Benefits
Maximize operator comfort and
control
Smooth operation
Low vibrations to maximize productivity
Features
Heavy-duty pistol grip hammer
Standard .401 round shank
Internal muffler minimizes exhaust sound
Unique vibration damping
Teasing trigger for slow start-up
| Model | CP7110 |
| Part number | 8941071101 |
| Actual air consumption | 413 l/mn |
| Air inlet thread size | 1/4 " |
| Average air consumption | 106 l/mn |
| Blows per minute | 3200 |
| Bore | 19 mm |
| Chisel rivet set shank | 10.2 mm |
| Cold rivet capacity | 6.4 mm |
| Cold rivet capacity (steel) | 4.8 mm |
| Length | 230 mm |
| Min. hose size | 10 mm |
| Net weight | 1.7 kg |
| Power (Joules) | 7.2 joule |
| Shank | Round |
| Sound DBA pressure | 98.3 db(A) |
| Sound Power | 109 db(A) |
| Stroke | 67 mm |
| Vibration | 6 m/s² |
| Vibration ISO | ISO-28927-9 |
| Vibration uncertainty (K) | 2.9 m/s² |
