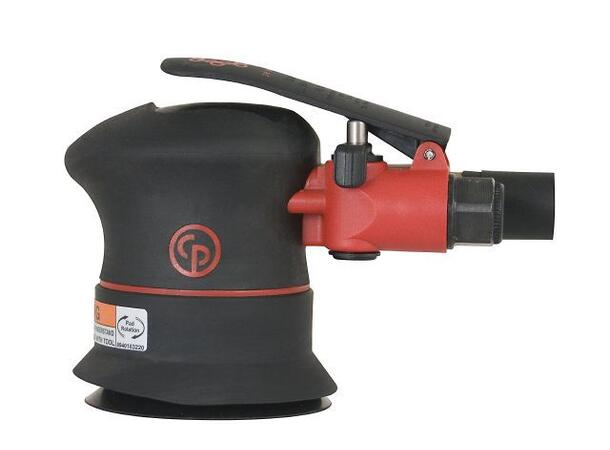

CP7225-3 Ekssentersliper
Ny slipeserie fra CP med 3" bakplate, lim
(PSA) eller borrelåsfeste (Hook and Loop).
Forbedret komfort, særdeles lavt vibrasjonsnivå og
lydnivå (kun 75dB) kjennetegner disse maskinene.
Benefits
Operator comfort with ergonomic
palm shape
Productivity increased with low vibrations level
Powerful and easy to use for vertical and horizontal applications
3/32" (2.5 mm): used for final sanding, finishing, and pre-polishing
processes
Features
3" (75 mm) random orbital
palm sander
3/32" (2.5 mm) orbit
Powerful 0.3 hp (210 W) motor
Soft grip, tear drop design for perfect control
Low noise level
Low vibrations
Shut-off and speed control switch
Non Vacuum (NV) model in PSA Pad
| Model | CP7225-3 |
| Part number | 8941072257 |
| Actual air consumption | 467 l/mn |
| Air inlet thread size | 1/4 " |
| Average air consumption | 233.5 l/mn |
| Free speed | 12000 rpm |
| Free speed air consumption | 5 l/s |
| Height | 100 mm |
| Height over spindle | 100 mm |
| Length | 145 mm |
| Min. hose size | 10 mm |
| Net weight | 0.63 kg |
| No-vacuum | yes |
| Orbit diameter | 2 1/2 mm |
| Pad diameter | 75 mm |
| Pad holes number | 0 |
| Pad type | PSA |
| Pad type Hook & Loop | no |
| Pad type PSA | yes |
| Paper size | 75 mm |
| Power | 210 W |
| Sound Power | 87 db(A) |
| Sound pressure | 76 db(A) |
| Spindle thread | 5/16-24 |
| Vacuum | no |
| Vibration | 2 1/2 m/s² |
| Vibration ISO | ISO-28927-3 |
| Vibration uncertainty (K) | 1.3 m/s² |
| Width | 80 mm |
