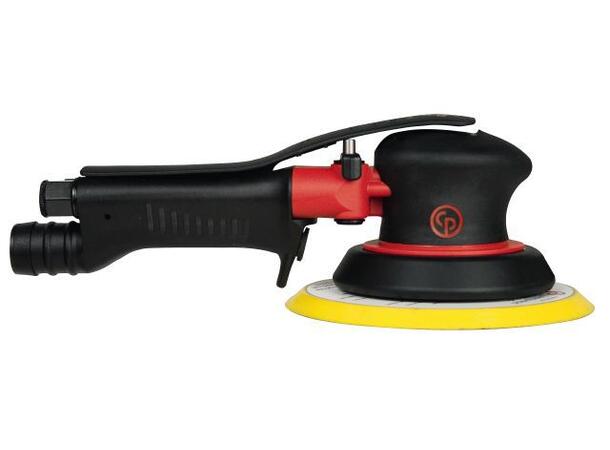

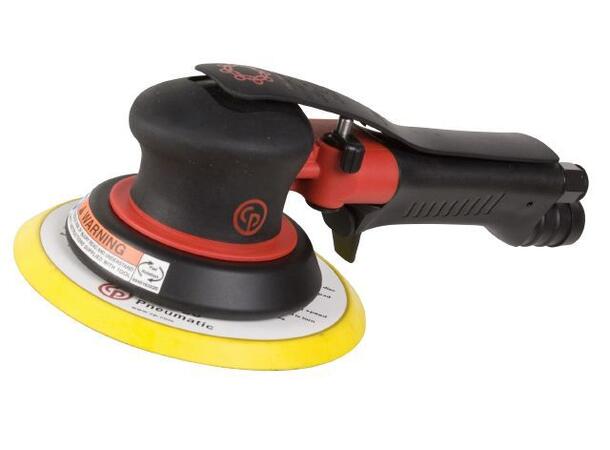

CP7255H Ekssentersliper
2-hånds slipemaskinserie fra CP. Ikke vakum, PSA-pad,
5mm utslag
Serien består av 6 maskiner med veldig lavt lyd-
og vibrasjonsnivå og forbedret komfort.
Velg mellom 5mm (rød fargekode) eller 10mm (sort
fargekode) utslag, med eller uten vakum og lim (PSA) eller borrelåspad
(Hook&Loop)
De forskjellige modellene i serien er:
CP7255H: Ikke vakum, PSA-pad, 5mm utslag
CP7255HE: Ikke vakum, H&L-pad, 5mm utslag
CP7255HCVE: Sentralvakum, H&L-pad, 5mm utslag
CP7215H: Ikke vakum, PSA-pad, 10mm utslag
CP7215HE: Ikke vakum, H&L-pad, 10mm utslag
CP7215HCVE: Sentralvakum, H&L-pad, 10mm utslag
Benefits
Operator comfort with ergonomic
palm shape
Productivity increased with low vibration level
Powerful and easy to use for vertical and horizontal applications
3/16" (5 mm): great for surface preparation from body filler to paint
primer
Features
Non Vacuum (NV) model in PSA Pad
2-handed 6" (150 mm) with random orbital palm sander
3/16" (5 mm) orbit
Powerful 0.3 hp (210 W) motor
Soft grip, tear drop design for perfect control
Low noise level
Shut-off and speed control switch
| Model | CP7255H |
| Part number | 8941072554 |
| Actual air consumption | 510 l/mn |
| Air inlet thread size | 1/4 " |
| Average air consumption | 255 l/mn |
| European Directives | 2006/42/EC (17/05/2006) |
| European Sound standard | EN ISO 15744 |
| European Standards | EN ISO 11148-8 : 2012 |
| Free speed | 11000 rpm |
| Free speed air consumption | 8 l/s |
| Height | 96 mm |
| Height over spindle | 96 mm |
| Length | 285 mm |
| Min. hose size | 10 mm |
| Net weight | 0.88 kg |
| No-vacuum | yes |
| Orbit diameter | 5 mm |
| Pad diameter | 150 mm |
| Pad holes number | 0 |
| Pad type | H&L |
| Pad type Hook & Loop | yes |
| Pad type PSA | no |
| Paper size | 150 mm |
| Power | 210 W |
| Sound Power | 92 db(A) |
| Sound pressure | 81 db(A) |
| Spindle thread | 5/16-24 |
| Vacuum | no |
| Vibration | 5.4 m/s² |
| Vibration ISO | ISO-28927-3 |
| Vibration uncertainty (K) | 2.4 m/s² |
| Width | 150 mm |
