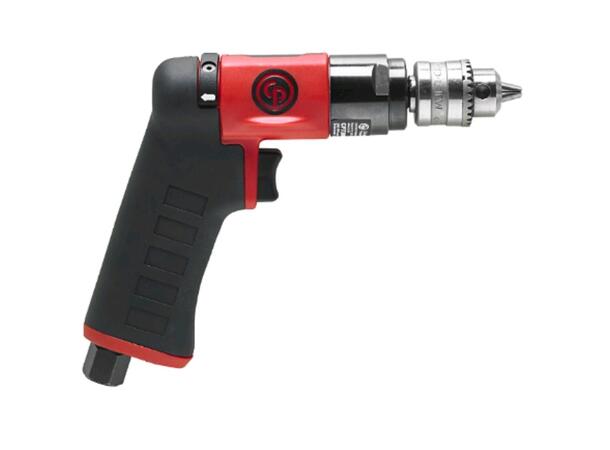

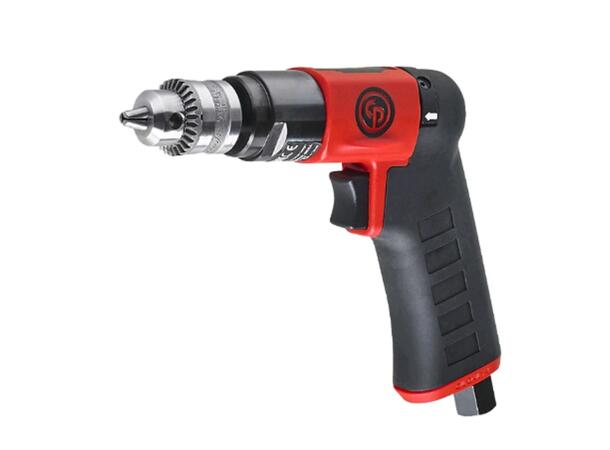

CP7300RC Drill
-Ny pistoldrill med lav vekt og kompakte mål, reversibel
Benefits
High Comfort
Ergonomics
Excellent Speed Control
High resistance to stalls
Great handling
Operator friendly
High durability
Supplied with high quality industrial Jacobs® chucks for longer use
- keyed Metal
Features
Composite housing with thermoplastic rubber handle grip
Wings on right & left sides to guide the forefinger
Large teasing trigger and progressive valve allowing more control to start holes
Low speed gear box
Flat back part for better pushing action while drilling and tapping
Reverse lever on the top for easier access
handle exhaust allowing the air to flow away from the operator
Supplied with high quality industrial Jacobs® chucks for longer use
- keyed Metal
Excellent for drilling, honing, reaming and hole sawing
| Model | CP7300RC |
| Part number | 8941073011 |
| Air inlet thread size | 1/4 " |
| Average air consumption | 2 1/2 l/s |
| Box dimensions | 246x134x57 mm |
| Chuck capacity | 6 mm |
| Collet / spindle size | |
| Free speed | 2800 rpm |
| Free speed air consumption | 10 l/s |
| Height | 146 mm |
| Length | 186 mm |
| Min. hose size | 10 mm |
| Net weight | 0.67 kg |
| Over carton | 1200x800x630 mm |
| Power | 230 W |
| Side to center | 38 mm |
| Sound Power | 93 db(A) |
| Sound pressure | 82 db(A) |
| Spindle or chuck type | 3/8-24 |
| Stall torque | 2.6 Nm |
| Vibration | <2.5 m/s² |
