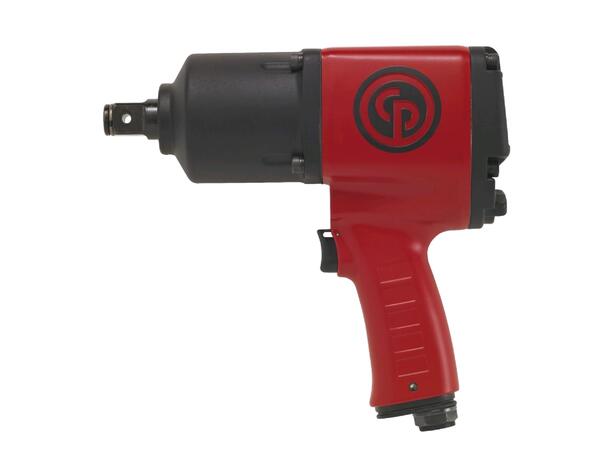

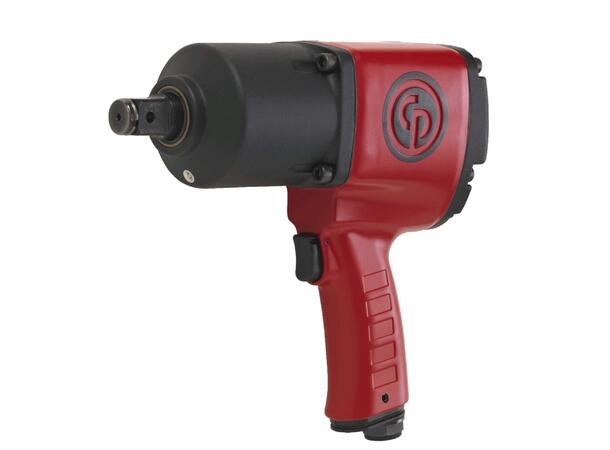

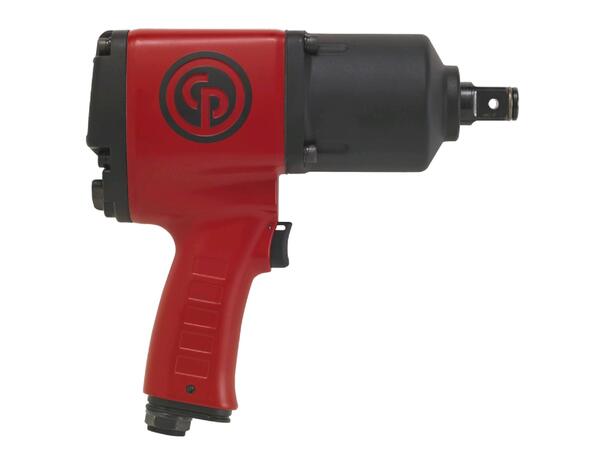

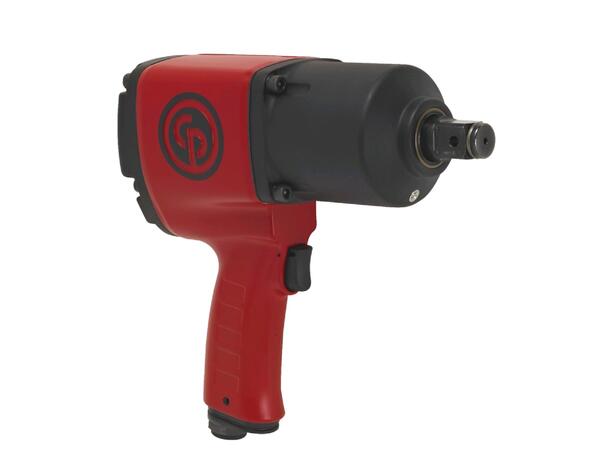

CP7630
Muttertrekker
Benefits
Powerful
Comfort & compact
Versatile
Best ratio price performance in its class
Features
1500 Nm – 1100 ft / lbs
Well balanced minimizing wrist strain
Handle fits perfectly in the hand
Suited for all maintenance applications
- Vans & Heavy vehicles mechanical repair
- MRO applications
Not marketed in USA and Canada
| Model | CP7630 |
| Part number | 8941076300 |
| Actual air consumption | 9.7 l/s |
| Air inlet thread size | 3/8 " |
| Average air consumption | 2.4 l/s |
| Clutch type | Twin hammer |
| Free speed | 6900 rpm |
| Free speed air consumption | 22.5 l/s |
| Handle type | Pistol |
| Length | 240 mm |
| Maximum Torque (reverse) | 1500 Nm |
| Min. hose size | 13 mm |
| Net weight | 4.8 kg |
| Socket retainer | Friction ring + hole |
| Sound Power | 116.3 db(A) |
| Sound pressure | 105.3 db(A) |
| Square drive | 3/4 " |
| Vibration | 9.8 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 3 m/s² |
| Working Torque Range (fwd) | 177 - 1,097 Nm |
