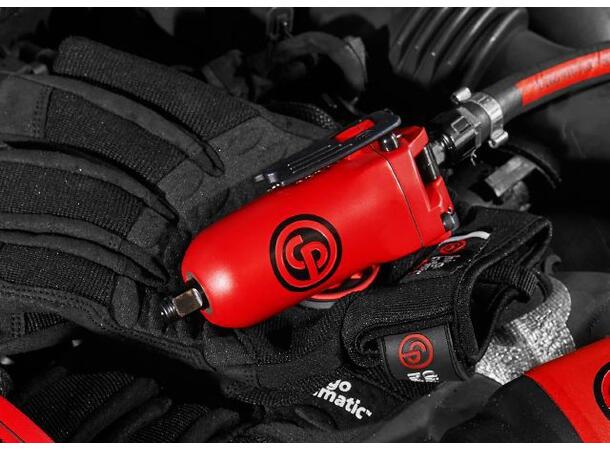

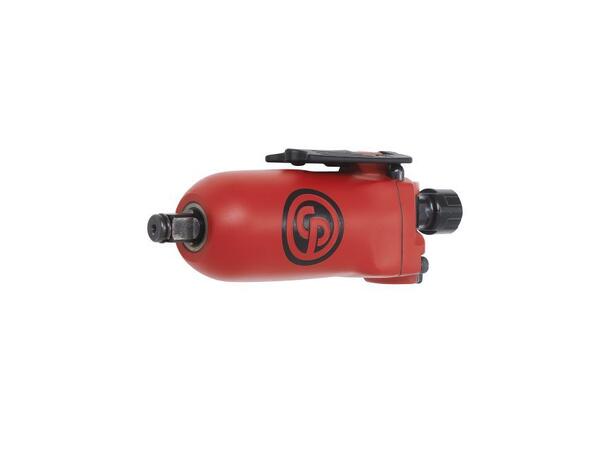

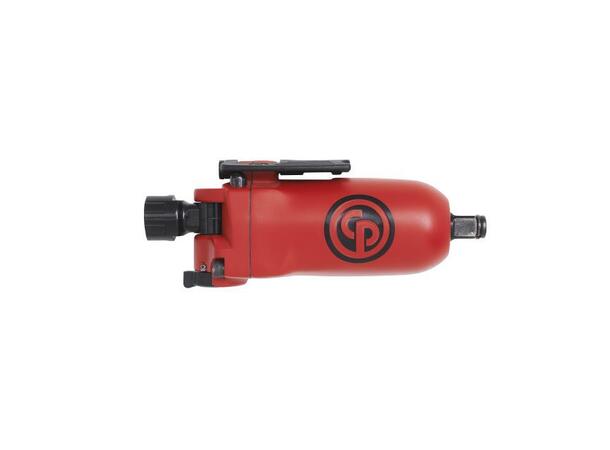

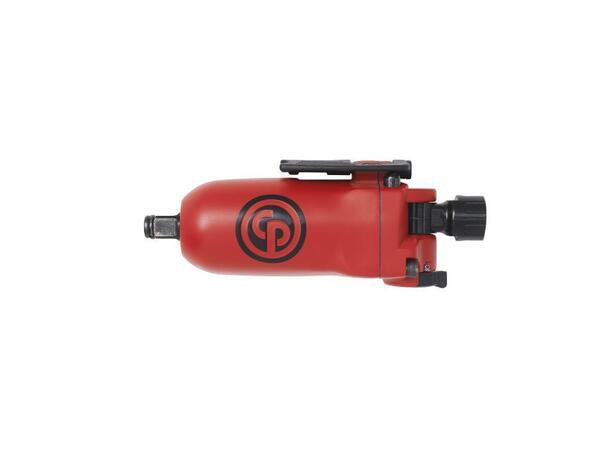

CP7711 Muttertrekker
Benefits
15% SMALLER than any other
butterfly impacts
Compact
Lightweight
Powerful
Easy operation
Durable
Features
5.5 in. / 140 mm length, provides
easier access to hard to reach places
1.16 lbs. / 0.53 Kg
80 ft.lbs. / 110 Nm in reverse
Double rocking dog mechanism & Aluminum housing
Power regulator in the back: 3 positions on both sides
Butterfly shift for forward / reverse
Built-in 180° air inlet swivel
Ideal tool for transmission and engine repair works, body panels, oil pans,
ignitions, motor cycle repair and vehicle seats
| Model | CP7711 |
| Part number | 8941077110 |
| Actual air consumption | 2.9 l/s |
| Air inlet thread size | 1/4 " |
| Average air consumption | 0.7 l/s |
| Clutch type | Rocking dog clutch |
| Free speed | 15000 rpm |
| Handle type | Butterfly |
| Length | 140 mm |
| Maximum Torque (reverse) | 110 Nm |
| Min. hose size | 10 mm |
| Net weight | 0.53 kg |
| Power/weight ratio | 220 Nm/kg |
| Side to center | 40 mm |
| Socket retainer | Friction ring |
| Sound Power | 103 db(A) |
| Sound pressure | 92 db(A) |
| Square drive | 1/4 " |
| Vibration | 4 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 1 m/s² |
| Working Torque Range (fwd) | 9 - 80 Nm |
