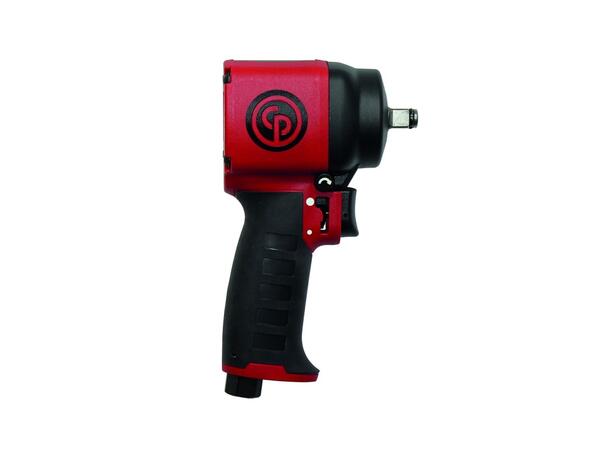

CP7731C Muttertrekker
Benefits
Best power to weight ratio: 346
ft-lbs / 470 Nm
Ultra compact
Easy to use
Durable
Features
2.1 lbs. – 1.0 Kg
346 ft.lbs - 470 Nm of maximum torque in reverse
4 1/4 in – 107 mm length
Jumbo hammer mechanism
Steel motor
Aluminum clutch housing
Composite housing with curved handle with Thermo-Plastic Rubber injected
S2S: 1 hand Forward – Reverse operation
New power setting system: 1 hand-operation behind the trigger
2 positions in reverse: max and lower torque
2 positions in forward: max and low torque
Socket retainer ring
Full teasing trigger
| Model | CP7731C |
| Part number | 8941077311 |
| Actual air consumption | 7.9 l/s |
| Air inlet thread size | 1/4 " |
| Average air consumption | 2 l/s |
| Blows per minute | 1400 |
| Clutch type | Single dog clutch |
| Free speed | 9000 rpm |
| Handle type | Pistol |
| Length | 110 mm |
| Maximum Torque (reverse) | 469 Nm |
| Min. hose size | 10 mm |
| Net weight | 1 kg |
| Power/weight ratio | 469 Nm/kg |
| Socket retainer | Friction ring |
| Sound Power | 107 db(A) |
| Sound pressure | 96 db(A) |
| Square drive | 3/8 " |
| Vibration | 10.33 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 1.38 m/s² |
| Working Torque Range (fwd) | 83 - 392 Nm |
