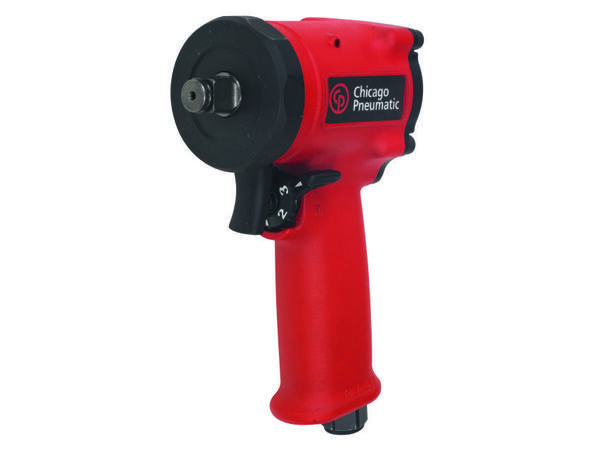

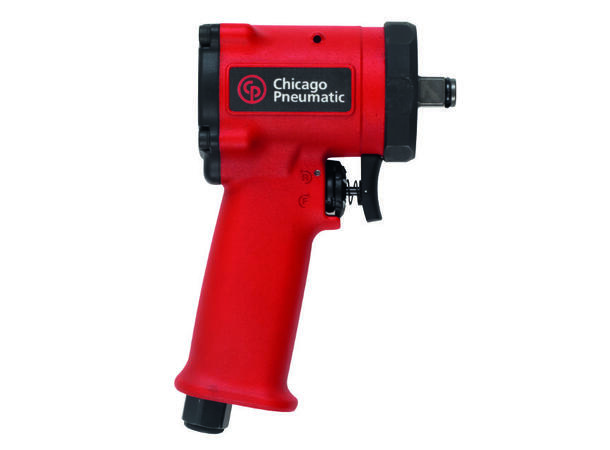

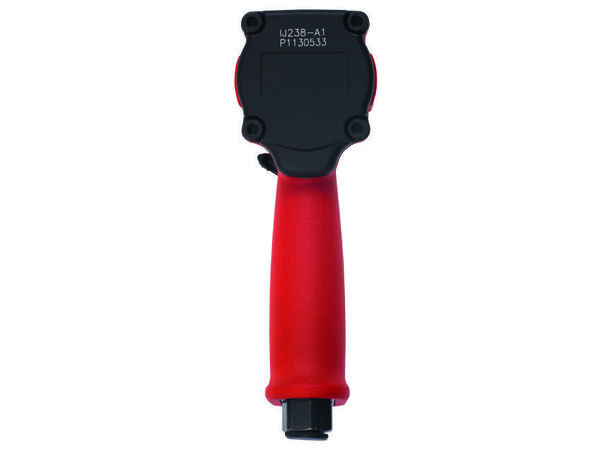

CP7732 1/2" Muttertrekker kompakt
Lett 1/2" ultra kompakt muttertrekker når adkomst trengs til trange plasser!
Robust trekker fra CP med enhånds retningsvender! Lett, sterk og prisgunstig muttertrekker.
Benefits
Best power to weight ratio: 450 ft-lbs / 610 Nm
Ultra compact
Easy to use
Durable
Features
Steel front cover & Aluminum body
One hand operation forward – reverse by either left or
right handed users
3 setting positions
Only 4.4'' long
Jumbo hammer
| Model | CP7732 |
| Part number | 8941077320 |
| Actual air consumption | 9 l/s |
| Air inlet thread size | 1/4 " |
| Average air consumption | 2.4 l/s |
| Blows per minute | 1400 |
| Clutch type | Single dog clutch |
| Free speed | 9000 rpm |
| Handle type | Pistol |
| Length | 112 mm |
| Maximum Torque (reverse) | 610 Nm |
| Min. hose size | 10 mm |
| Net weight | 1.3 kg |
| Power/weight ratio | 469.2 Nm/kg |
| Side to center | 25 mm |
| Socket retainer | Friction ring |
| Sound Power | 106 db(A) |
| Sound pressure | 95 db(A) |
| Square drive | 1/2 " |
| VST2 | 2.4 |
| Vibration | 12.1 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 4.4 m/s² |
| Working Torque Range (fwd) | 138 - 420 Nm |
