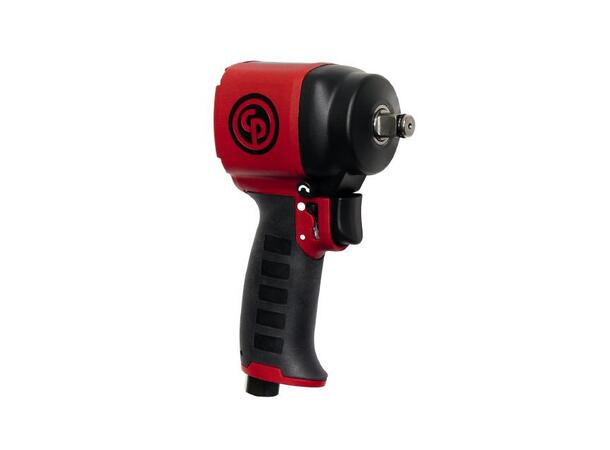

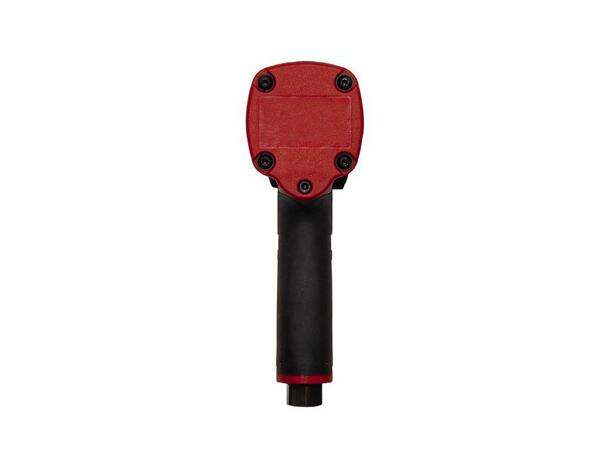

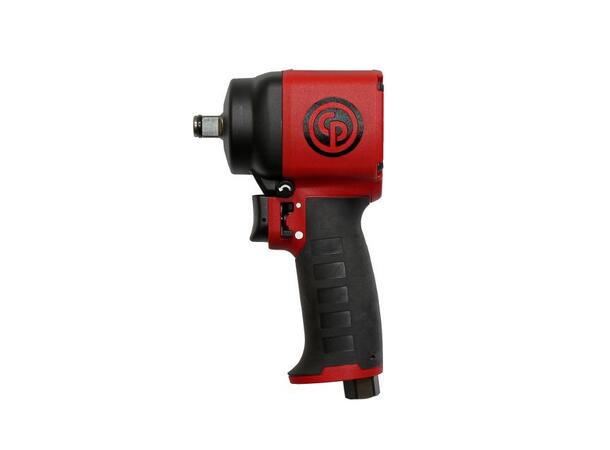

CP7732C 1/2" Muttertrekker kompakt

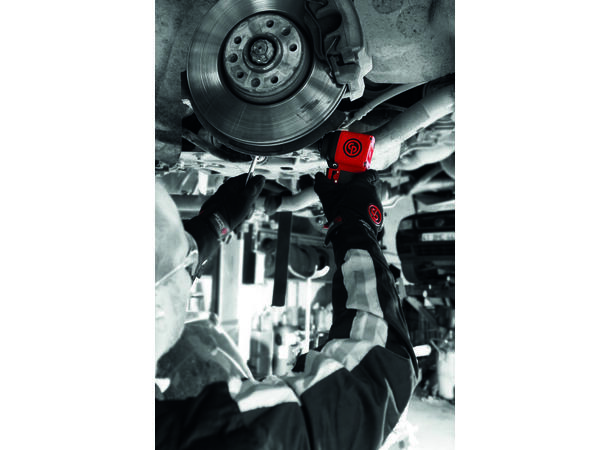

Lett 1/2" ultra kompakt muttertrekker når adkomst trengs til trange plasser!
Robust trekker fra CP med enhånds retningsvender! Lett, sterk og prisgunstig muttertrekker.
Benefits
Ultra Lightweight
Easy operation
Compact
Powerful
Durable
Features
2.1 lbs. – 1.0 Kg
460 ft.lbs - 625 Nm of maximum torque in reverse
4 1/4 in – 108 mm length
Jumbo hammer mechanism
Steel motor
Aluminum clutch housing
Composite housing with curved handle with Thermo-Plastic Rubber injected
S2S: 1 hand Forward – Reverse operation
New power setting system: 1 hand-operation behind the trigger
2 positions in reverse: max and lower torque
2 positions in forward: max and low torque
Socket retainer ring
Full teasing trigger
| Model | CP7732C |
| Part number | 8941077321 |
| Actual air consumption | 10.2 l/s |
| Air inlet thread size | 1/4 " |
| Average air consumption | 2.6 l/s |
| Blows per minute | 1400 |
| Box dimensions | 175*202*75 mm |
| Clutch type | Jumbo |
| Free speed | 9410 rpm |
| Free speed air consumption | 14.6 l/s |
| Handle type | Pistol |
| Length | 108 mm |
| Maximum Torque (reverse) | 625 Nm |
| Min. hose size | 10 mm |
| Net weight | 1 kg |
| Side to center | 32 mm |
| Socket retainer | Friction ring |
| Sound Power | 106.5 db(A) |
| Sound pressure | 95.5 db(A) |
| Square drive | 1/2 " |
| Vibration | 10.8 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 1.42 m/s² |
| Working Torque Range (fwd) | 70 - 387 Nm |
