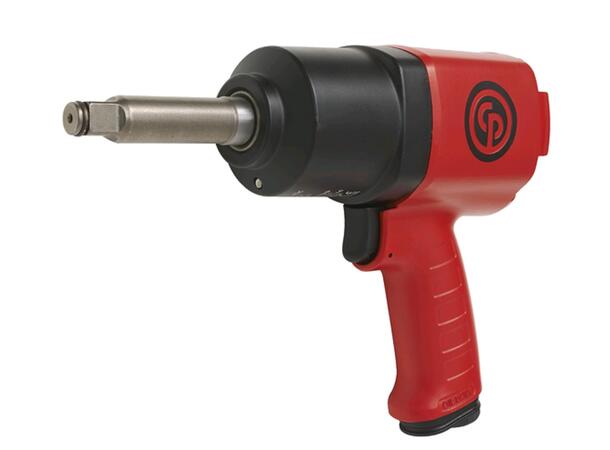

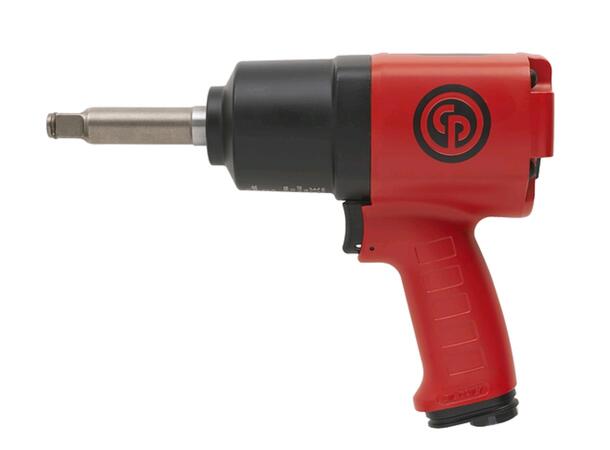

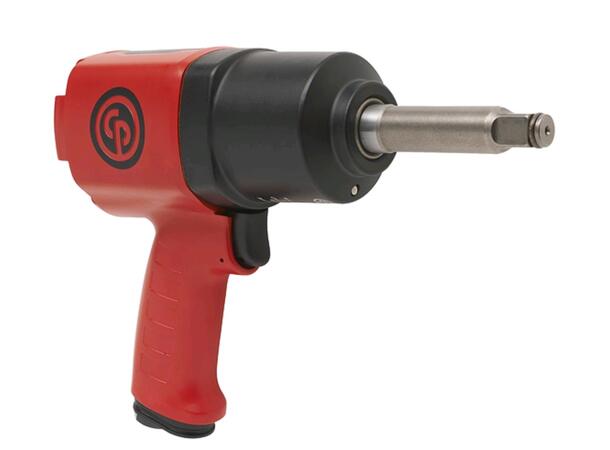

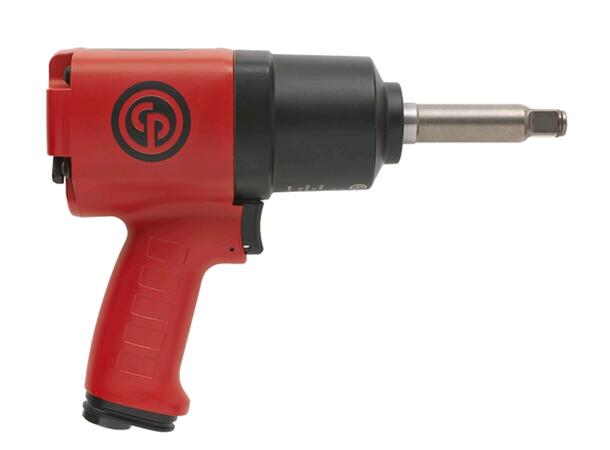

CP7736-2 1/2" Muttertrekker
Benefits
Powerful
Durable
Comfort and compact
Versatile
Easy to use
Best ratio price performance in its class
Features
670 ft. lbs. - 900 Nm max in reverse
Twin hammer mechanism and steel motor
Well balanced minimizing wrist strain
Ergonomic handle fits perfectly in the hand
Suited for all maintenance applications
- Light vehicles tire changing operations
- Light vehicles mechanical repair
- MRO applications
3 power settings in forward and one in reverse
| Model | CP7736-2 |
| Part number | 8941077362 |
| Actual air consumption | 8.3 l/s |
| Air inlet thread size | 1/4 " |
| Average air consumption | 2.1 l/s |
| Clutch type | Double-Dog |
| Free speed | 10020 rpm |
| Handle type | Pistol |
| Length | 243 mm |
| Maximum Torque (reverse) | 900 Nm |
| Min. hose size | 10 mm |
| Net weight | 2.9 kg |
| Side to center | 70 mm |
| Socket retainer | Friction ring |
| Sound Power | 104.8 db(A) |
| Sound pressure | 93.8 db(A) |
| Square drive | 1/2 " |
| Vibration | 9.5 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 2.2 m/s² |
| Working Torque Range (fwd) | 69 - 770 Nm |
