CP7737 Muttertrekker kompakt
Lett 1/2" ultra

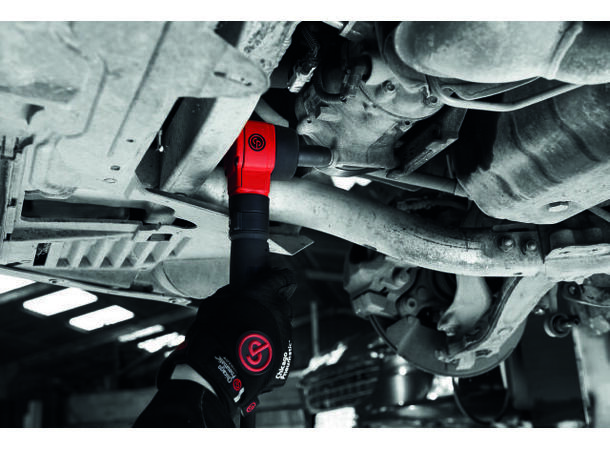

kompakt muttertrekker når adkomst trengs til trange plasser!
Kompakt muttertrekker fra CP med enhånds retningsvender! Lett, sterk og
prisgunstig vinkel muttertrekker. Kommer til på de mest utrolige plasser.
Byggehøyde kun 88mm.
Benefits
High Durability
Compact
Powerful
Comfort
Great Control
Easy Operation
Single handed Forward – Reverse operation
3 positions in forward and 1 in reverse
Features
Jumbo hammer mechanism
Steel motor
Composite cover
Direct drive transmission mechanism
9.8 in -240 mm length & 3.46 in. (88 mm) height
220 ft.lbs - 300 Nm of maximum torque in reverse (for 1/2’’ model)
2.46 lbs. – 1.12 Kg
Over molded composite and ergonomic handle to fit perfectly in hand
Full teasing trigger
Single handed Forward – Reverse operation
3 positions in forward and 1 in reverse
Socket retainer ring
| Model | CP7737 |
| Part number | 8941077370 |
| Actual air consumption | 7.5 l/s |
| Air inlet thread size | 1/4 " |
| Average air consumption | 1.9 l/s |
| Blows per minute | 1600 |
| Box dimensions | 292*100*67 mm |
| Clutch type | Jumbo |
| Free speed | 9000 rpm |
| Free speed air consumption | 11.73 l/s |
| Handle type | Pistol |
| Length | 240 mm |
| Maximum Torque (reverse) | 300 Nm |
| Min. hose size | 10 mm |
| Net weight | 1.13 kg |
| Side to center | 30 mm |
| Socket retainer | Friction ring |
| Sound Power | 104 db(A) |
| Sound pressure | 93 db(A) |
| Square drive | 1/2 " |
| Vibration | 10.3 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 1.3 m/s² |
| Working Torque Range (fwd) | 34 - 224 Nm |
