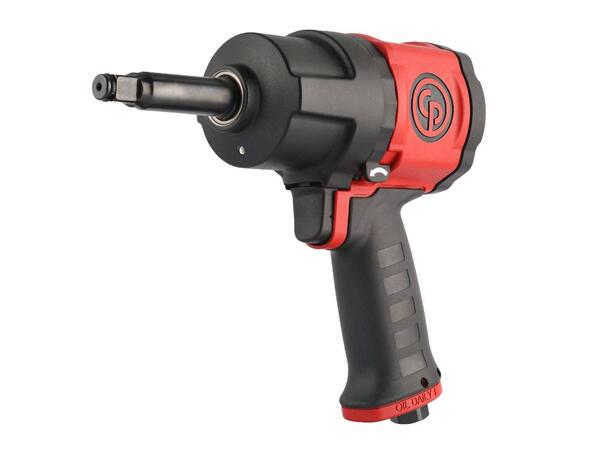

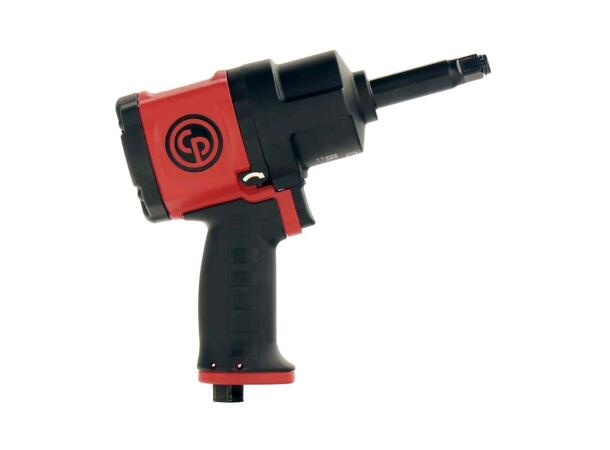

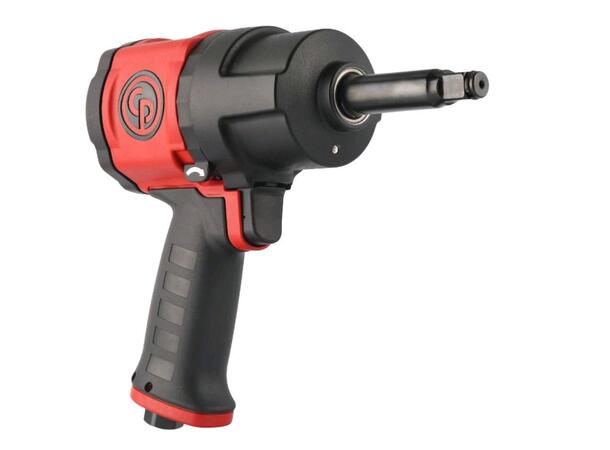

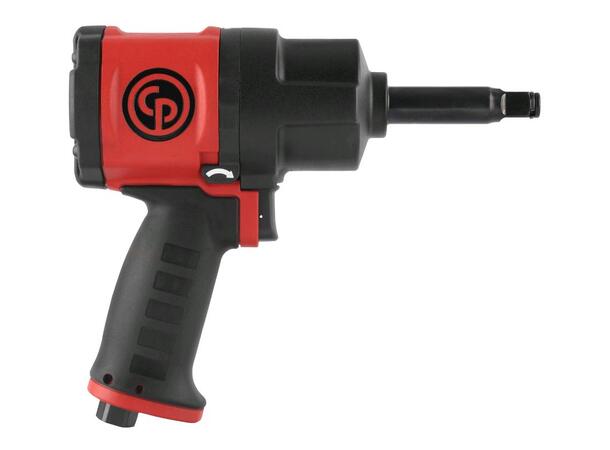

CP7748-2 G Muttertrekker 1/2"

Kompositt, meget sterk, 1300Nm

Varenr: 8941077486
CP7748-2 G Muttertrekker 1/2" Kompositt, meget sterk, 1300Nm CP7748-2 G Muttertrekker 1/2" Kompositt, meget sterk, 1300Nm CP7748-2 G Muttertrekker 1/2" Kompositt, meget sterk, 1300Nm CP7748-2 G Muttertrekker 1/2" Kompositt, meget sterk, 1300Nm
3 888,-
Bestillingsvare (2 dager)

CP7748-2 G Muttertrekker med lang drivtapp

Benefits

Powerful
Ergonomic
Compact
Durable
Lightweight
Recognizable
Comfortable

Features

960 ft.lbs / 1,300 Nm of max torque in reverse position
One-hand reverse system (Ring system)
8.86 in. / 225 mm of length
Hard anodized end plates / Hard chromium aluminum cylinder / Twin hammer mechanism
4.65 lbs – 2.11 kg thanks to its composite motor housing
Name laser engraved at the back of the tool
Curved handle with rubber material
Resistant to most chemicals used in workshops
Rubber grip at the back
Does not slip when it is in operator’s hand even if it is dirty or oily

CP7748-2 G Muttertrekker med lang drivtapp

Benefits

Powerful
Ergonomic
Compact
Durable
Lightweight
Recognizable
Comfortable

Features

960 ft.lbs / 1,300 Nm of max torque in reverse position
One-hand reverse system (Ring system)
8.86 in. / 225 mm of length
Hard anodized end plates / Hard chromium aluminum cylinder / Twin hammer mechanism
4.65 lbs – 2.11 kg thanks to its composite motor housing
Name laser engraved at the back of the tool
Curved handle with rubber material
Resistant to most chemicals used in workshops
Rubber grip at the back
Does not slip when it is in operator’s hand even if it is dirty or oily

ModelCP7748-2
Part number8941077486
Actual air consumption12 l/s
Air inlet thread size1/4 "
Average air consumption3 l/s
Blows per minute1350
Box dimensions95x215x275 mm
Clutch typeTwin Hammer
European Directives2006/42/EC (17/05/2006)
European Sound standardISO 15744
European StandardsEN ISO 11148-6:2012
Free speed7000 rpm
Handle typePistol
Height200 mm
Length225 mm
Maximum Torque (reverse)1300 Nm
Min. hose size10 mm
Net weight2.11 kg
PSR appliedS5063
Series AlphacodeG
Side to center39 mm
Socket retainerFriction ring
Sound Power105.3 db(A)
Sound pressure94.3 db(A)
Sound uncertainty3 db(A)
Square drive1/2 "
Vibration11.3 m/s²
Vibration ISOISO 28927-2
Vibration uncertainty (K)3.8 m/s²
Width78 mm
Working Torque Range (fwd)95 - 750 Nm





Produktinformasjon

Verktøy Muttertrekker
