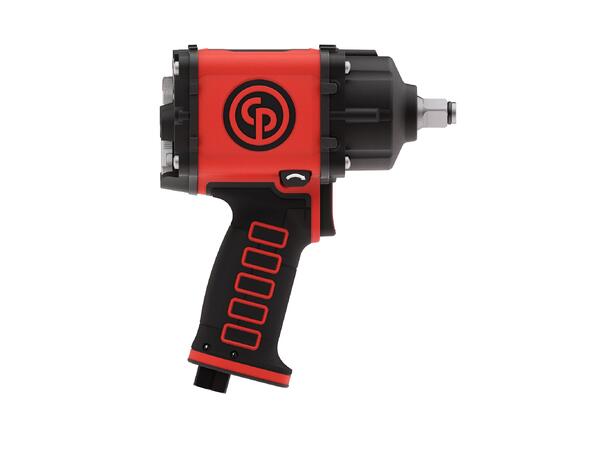

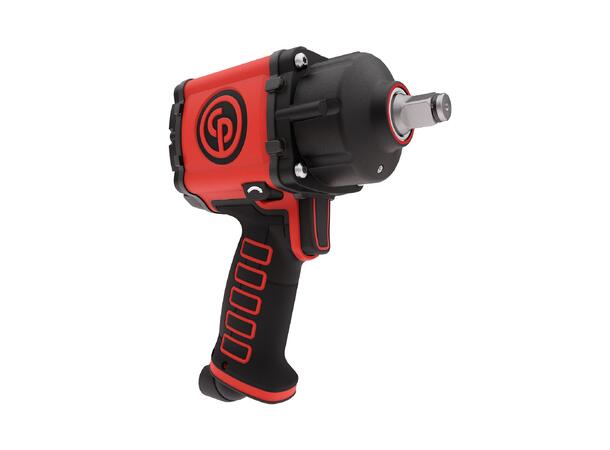

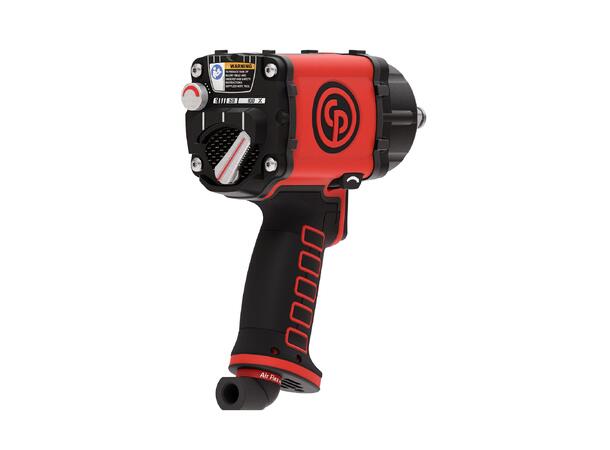

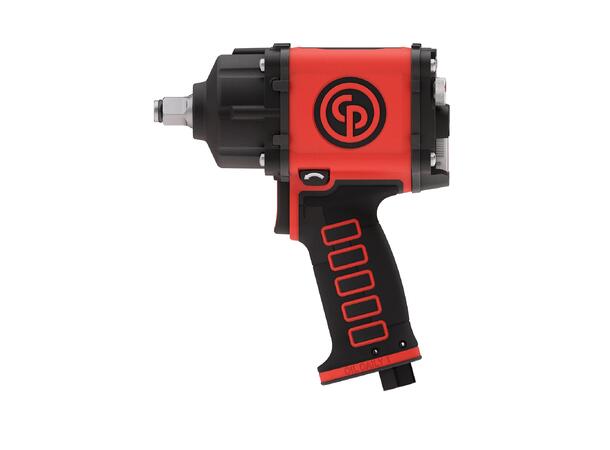

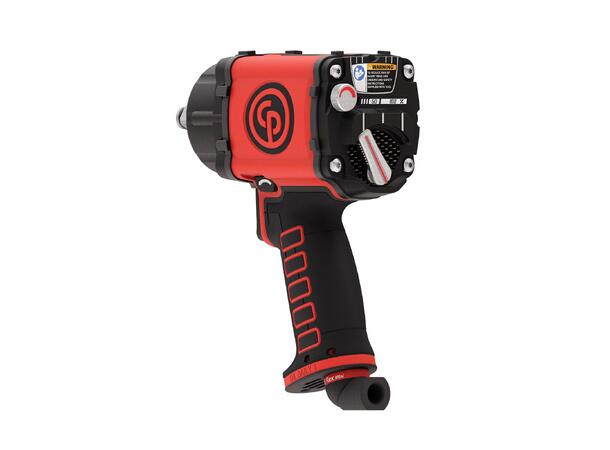

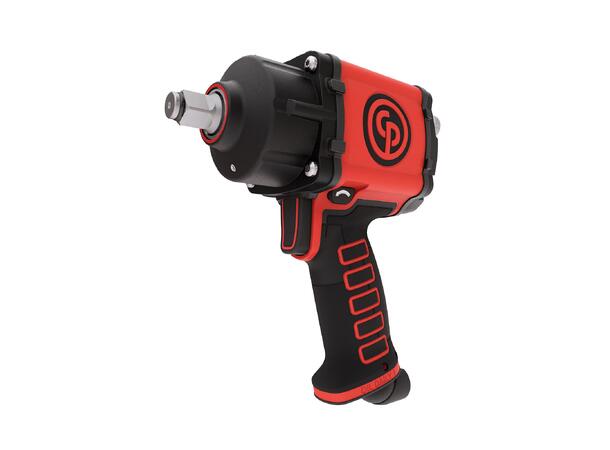

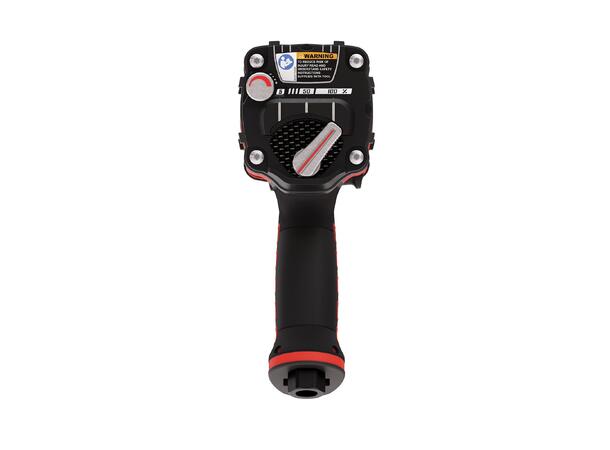

CP7755 Muttertrekker
Benefits
Complete power control
High accessibility / maneuvrability
Ergonomic
Lightweight
High durability
High comfort
Improved safety
Features
The best and the most adjustable
power control for pneumatic tools
5, 10, 15, 20, 25, 30, 35, 40, 45, 50 and 100% of maximum torque
Composite motor housing (4 lbs / 1.85 kg)
Twin hammer mechanism
Bumpers all over the tool
Bi-material and bi-color handle and trigger
Friction ring socket retainer
*Final torque must be applied manually using a calibrated torque wrench (please
refer to the operator’s manual)
| Model | CP7755 |
| Part number | 8941077550 |
| Actual air consumption | 108 l/mn |
| Air inlet thread size | 1/4 " |
| Blows per minute | 1200 |
| Box dimensions | 272x209x95 mm |
| Clutch type | Twin hammer |
| Dimension A | 63.5 mm |
| Dimension B | 55.4 mm |
| European Directives | 2006/42/EC (17/05/2006) |
| European Sound standard | EN ISO 15744 |
| European Standards | EN ISO 11148-6:2012 |
| Free speed | 7700 rpm |
| Free speed air consumption | 156 l/mn |
| Handle type | Pistol |
| Height | 199 mm |
| Length | 169 mm |
| Maximum Torque (fwd) | 1080 Nm |
| Maximum Torque (reverse) | 1300 Nm |
| Min. hose size | 10 mm |
| Net weight | 1.85 kg |
| Power/weight ratio | 702 Nm/kg |
| Side to center | 38 mm |
| Socket retainer | Friction ring |
| Sound Power | 105 db(A) |
| Sound pressure | 94 db(A) |
| Sound uncertainty | 3 db(A) |
| Square drive | 12.7 mm |
| Vibration | 8.5 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 3.4 m/s² |
| Width | 76 mm |
| Working Torque Range (fwd) | 80 - 575 Nm |
