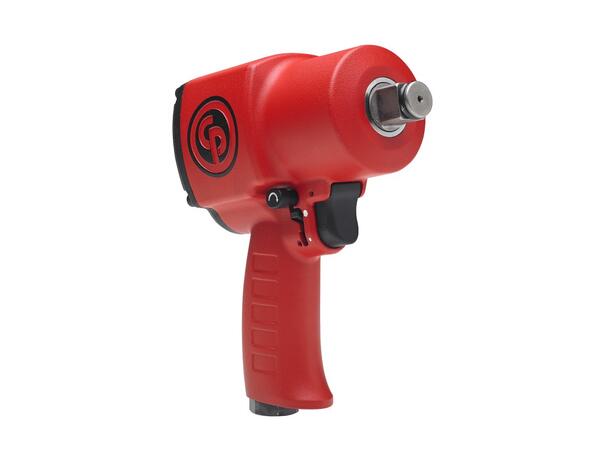

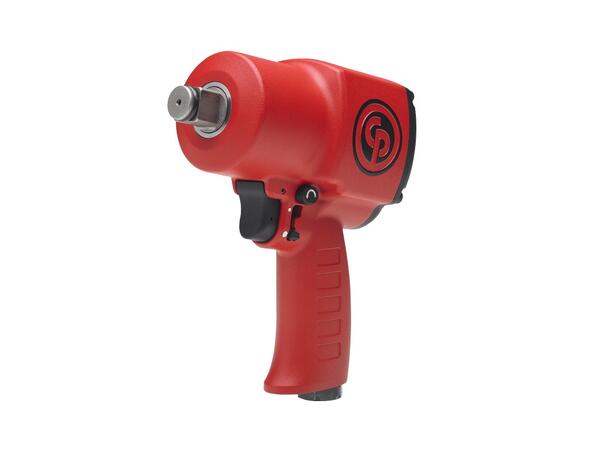

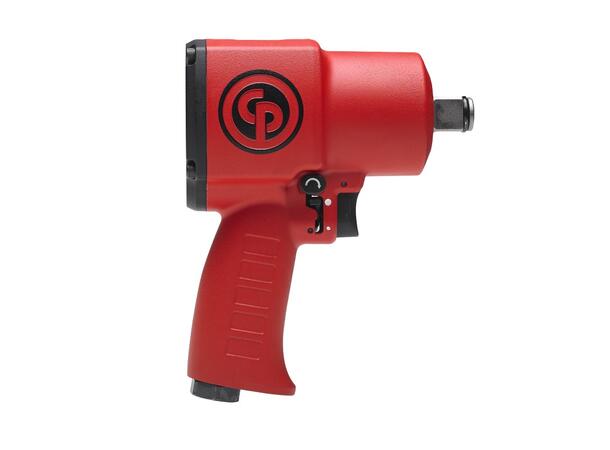

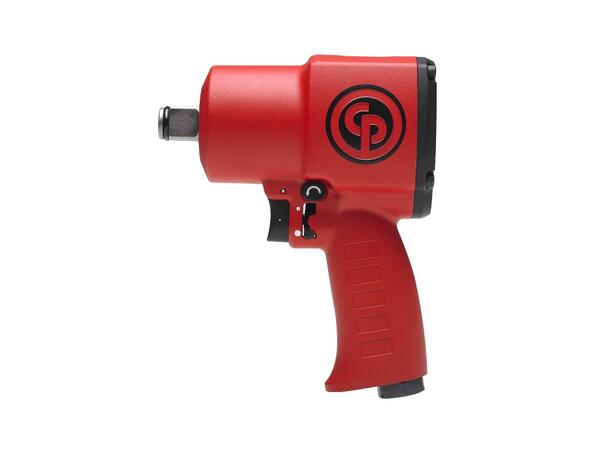

CP7762 Muttertrekker
Benefits
ULTRA Compact
Lightweight
Powerful
Operator Comfort & Easy to handle
Hight Durability
Optimum Handle Design
Features
6.2 in / 158.7 mm length for
restricted working areas
6.6 lbs. / 3.0 kg for less operator fatigue
1050 ft.lbs / 1420 Nm in reverse for high productivity
Side2Side forward and reverse system
Full teasing trigger
One hand Forward & Reverse speed regulator button
Steel motor
Twin Hammer mechanism
Aluminum housing
Ergonomic P-handle with full teasing trigger
Perfect weight distribution
| Model | CP7762 |
| Part number | 8941077620 |
| Actual air consumption | 16.4 l/s |
| Air inlet thread size | 3/8 " |
| Average air consumption | 4.1 l/s |
| Blows per minute | 960 |
| Clutch type | Twin hammer |
| Free speed | 4850 rpm |
| Free speed air consumption | 26.7 l/s |
| Handle type | Pistol |
| Length | 158 mm |
| Maximum Torque (reverse) | 1420 Nm |
| Min. hose size | 13 mm |
| Net weight | 2.9 kg |
| Power/weight ratio | 489.7 Nm/kg |
| Side to center | 42 mm |
| Socket retainer | Friction ring |
| Sound Power | 103.8 db(A) |
| Sound pressure | 92.8 db(A) |
| Square drive | 3/4 " |
| Vibration | 10.7 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 2.8 m/s² |
| Working Torque Range (fwd) | 200 - 900 Nm |
