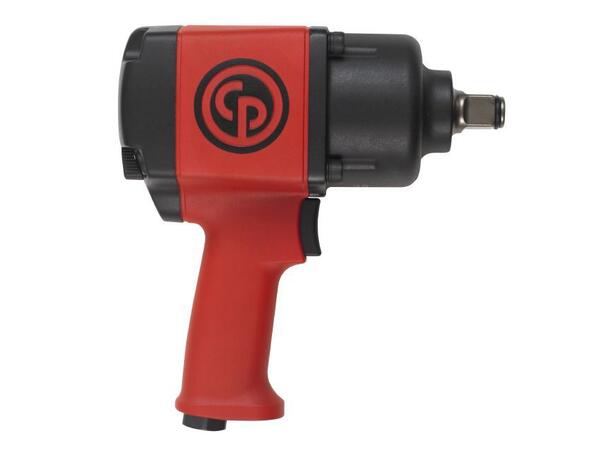

CP7763 Muttertrekker
Kompakt og kraftig
muttertrekker med 3 trinns regulator
Benefits
Ideal for General Maintenance
applications
Powerful motor and durable clutch
Operator comfort
Features
3/4" impact wrench with Ring
retainer
Twin hammer clutch
High power: 1,200 ft.lbs (1,627 Nm)
Combined power regulator with forward/reverse
| Model | CP7763 |
| Part number | 8941077630 |
| Actual air consumption | 14.2 l/s |
| Air inlet thread size | 3/8 " |
| Average air consumption | 3.5 l/s |
| Blows per minute | 900 |
| Clutch type | Twin hammer |
| Free speed | 6300 rpm |
| Handle type | Pistol |
| Length | 229 mm |
| Maximum Torque (reverse) | 1630 Nm |
| Min. hose size | 13 mm |
| Net weight | 5.25 kg |
| Power/weight ratio | 310.5 Nm/kg |
| Side to center | 45 mm |
| Socket retainer | Friction ring |
| Sound Power | 107 db(A) |
| Sound pressure | 96 db(A) |
| Square drive | 3/4 " |
| VST2 | 48 |
| Vibration | 10.4 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 4.2 m/s² |
| Working Torque Range (fwd) | 136 - 1288 Nm |
