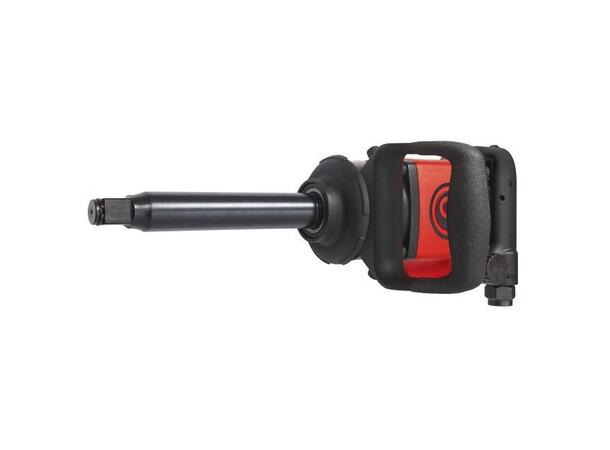

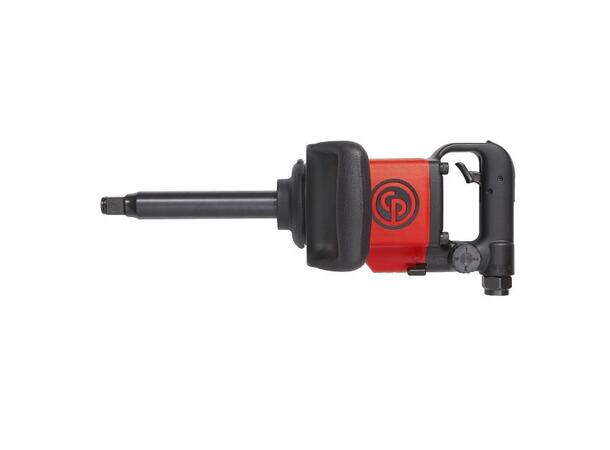

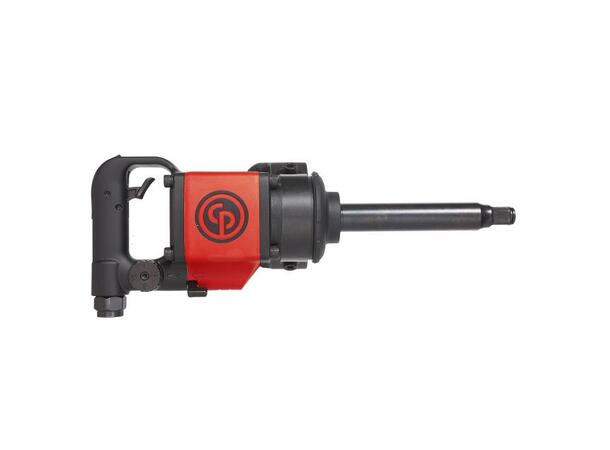

CP7763D-6 Muttertrekker
Benefits
Great Performance
Lightweight
Comfort
Easy to Use
Rugged and Robust
Easy Operation
Features
16.1 lbs. – 7.3 kg
1300 ft.lbs. / 1760 Nm in reverse
Twin hammer mechanism
Steel motor
Intuitive Forward / Reverse lever & power regulator on both sides
4 position power settings on both sides
Side handle with soft touch grip
Down exhaust
Aluminum housing
Composite cover on the clutch housing
Socket retainer ring
| Model | CP7763D-6 |
| Part number | 8941077637 |
| Actual air consumption | 19.3 l/s |
| Air inlet thread size | 1/2 " |
| Box dimensions | 475*190*130 mm |
| Clutch type | Twin hammer |
| Free speed | 6600 rpm |
| Free speed air consumption | 26.6 l/s |
| Handle type | D-Handle Inside Trigger |
| Length | 445 mm |
| Maximum Torque (reverse) | 1760 Nm |
| Min. hose size | 13 mm |
| Net weight | 7.3 kg |
| Over carton | 500*210*290 mm |
| Side to center | 45 mm |
| Socket retainer | Friction ring |
| Sound Power | 109 db(A) |
| Sound pressure | 98 db(A) |
| Square drive | 3/4 " |
| Vibration | 12 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 3.3 m/s² |
| Working Torque Range (fwd) | 340 - 1450 Nm |
