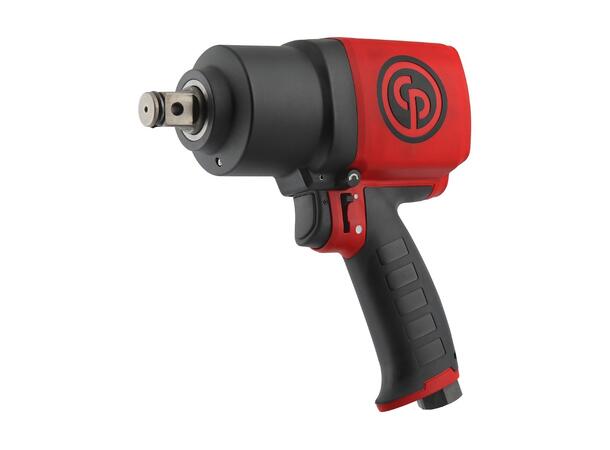

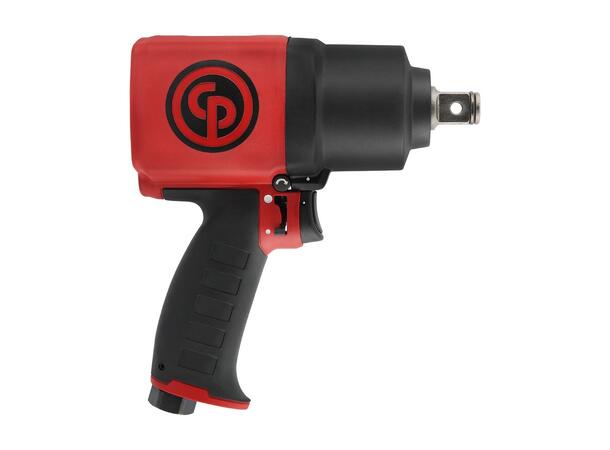

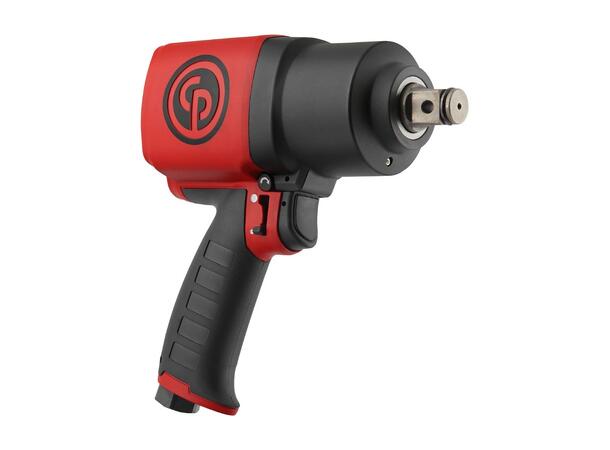

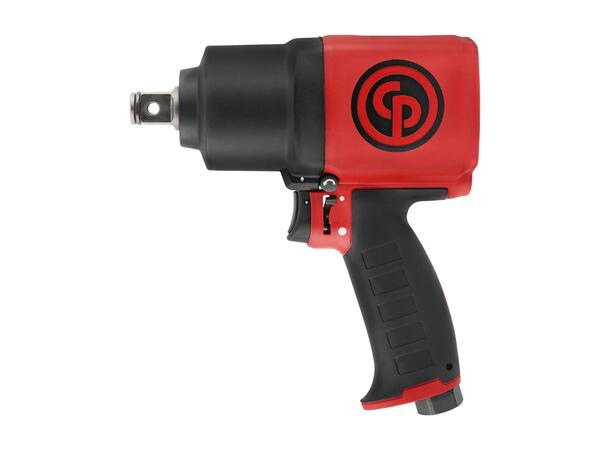

CP7769D Muttertrekker
Fantastisk 3/4"
muttertrekker med masse krefter, enkel retningsvender og perfekt balanse!
1950Nm og 3,37kg sier det meste - prøv selv!
Ny kompositt-trekker fra CP med "side
-to-side" (S2S) teknologi med markedets enkleste retningsvender!
Lett, sterk og velbalansert muttertrekker.
Benefits
Compact
Ergonomic
Powerful
Lightweight
High durability
Flexible
More secured
Features
Length = 7.9 in. / 200 mm
All controls within reach
Variable speed trigger
One-hand power adjustment
One-hand reverse system
1440 ft.lbs / 1950 Nm of maximum torque
Composite motor housing
Twin hammer mechanism
360° swivel air inlet
Socket retainer ring combined with hole retainer
| Model | CP7769 |
| Part number | 8941077691 |
| Actual air consumption | 1158 l/mn |
| Air inlet thread size | 3/8 " |
| Average air consumption | 4.8 l/s |
| Blows per minute | 1200 |
| Box dimensions | 235x235x101 mm |
| Clutch type | Twin hammer |
| European Directives | 2006/42/EC (17/05/2006) |
| European Sound standard | ISO 15744 |
| European Standards | EN ISO 11148-6:2012 |
| Free speed | 6500 rpm |
| Handle type | Pistol |
| Height | 220 mm |
| Length | 200 mm |
| Maximum Torque (reverse) | 1950 Nm |
| Min. hose size | 13 mm |
| Net weight | 3.15 kg |
| Power/weight ratio | 619.05 Nm/kg |
| Series Alphacode | D |
| Socket retainer | Dual (hole+friction) |
| Sound Power | 107.8 db(A) |
| Sound pressure | 96.8 db(A) |
| Square drive | 3/4 " |
| Vibration | 12.97 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 1 1/2 m/s² |
| Width | 84 mm |
| Working Torque Range (fwd) | 407 - 1464 Nm |
