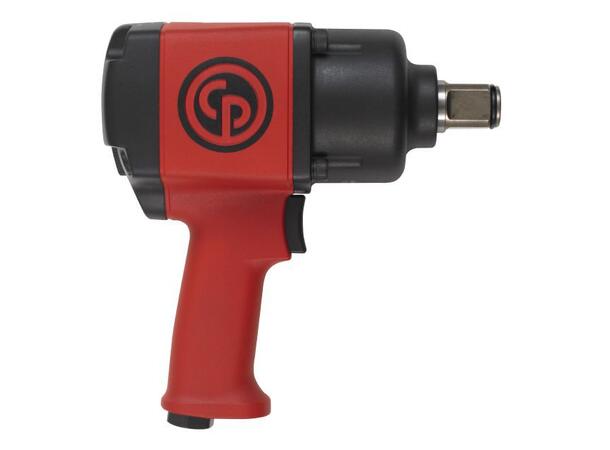

CP7773 Muttertrekker 1"
Kompakt Muttertrekker med høy kapasitet og tre trinns regulator
Benefits
Ideal for General Maintenance applications
Powerful motor and durable clutch
Operator comfort due to reduced noise level
Features
1" pistol impact wrench with ring retainer
Twin hammer clutch
High power: 1200 ft.lbs (1627 Nm)
Compact size with only 12,1 lbs (5.25 kg)
Combined power regulator with forward/reverse
| Model | CP7773 |
| Part number | 8941077730 |
| Actual air consumption | 14.2 l/s |
| Air inlet thread size | 3/8 " |
| Average air consumption | 3.5 l/s |
| Blows per minute | 900 |
| Clutch type | Twin hammer |
| Free speed | 6300 rpm |
| Handle type | Pistol |
| Length | 234 mm |
| Maximum Torque (reverse) | 1630 Nm |
| Min. hose size | 13 mm |
| Net weight | 5 1/2 kg |
| Power/weight ratio | 296.4 Nm/kg |
| Side to center | 45 mm |
| Socket retainer | Friction ring |
| Sound Power | 107 db(A) |
| Sound pressure | 96 db(A) |
| Square drive | 1 " |
| VST2 | 48 |
| Vibration | 10.4 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 4.2 m/s² |
| Working Torque Range (fwd) | 136 - 1,288 Nm |
