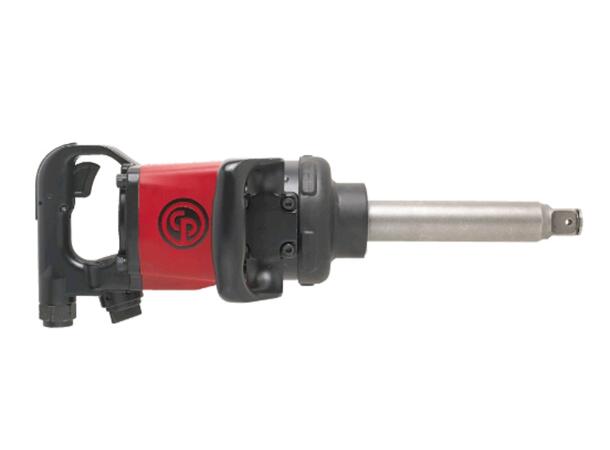

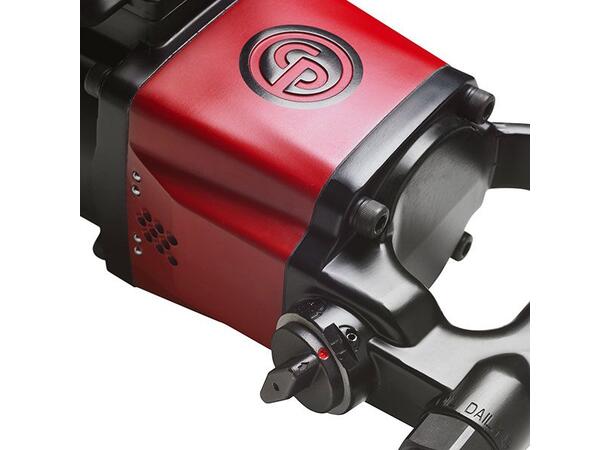

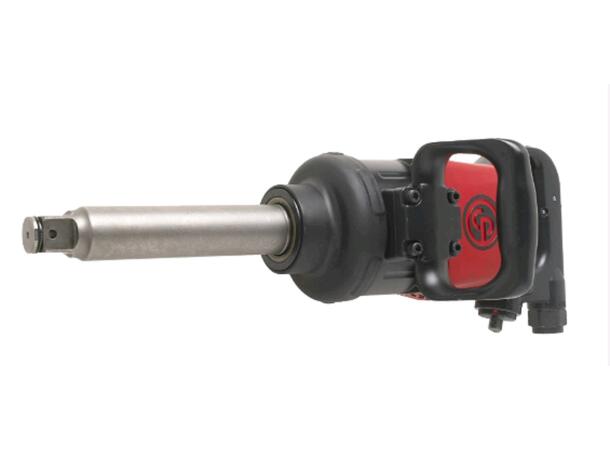

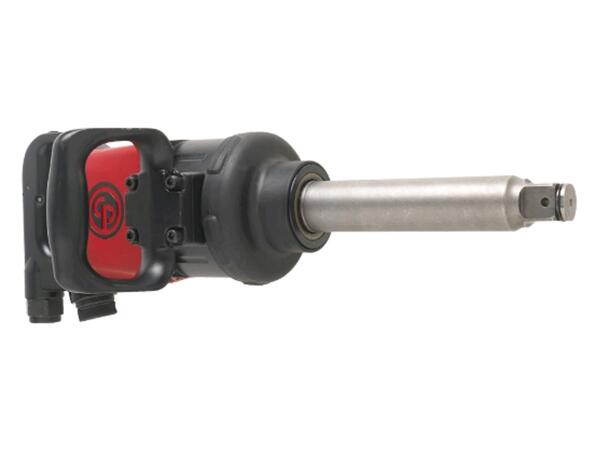

CP7782TL-6 1'' Muttertrekker med innebygget momentkontroll
Ny muttertrekkerserie fra CP med perfekt ergonomi og maksimal kraft i revers - kontrollert tiltrekning.
Finnes også med standard drivtapp.
Hull i drivtapp for feste av pipe.
Benefits
Torquelimited 1 position in forward - approx 500Nm in 3 sek
High efficiency motor, yet economical with durable reinforced clutch mechanism
Durable impact wrench with great power for the toughest jobs on heavy vehicles
Features
1" straight impact wrench with 6" extended anvil
1920 ft.lbs - 2600 Nm of maximum torque in reverse
Pinless closed reinforced rocking dog impact mechanism
Dual socket retention, hole and friction ring
Ergonomic side handle
Full teasing trigger
Regulator with integrated forward/reverse with 3-position power settings in both directions
| Model | CP7782TL-6 |
| Part number | 8941077827 |
| Actual air consumption | 19.2 l/s |
| Air inlet thread size | 1/2 " |
| Average air consumption | 4.8 l/s |
| Blows per minute | 500 |
| Bolt size | M32 mm |
| Box dimensions | 670*245*130 mm |
| European Directives | 2006/42/EC (17/05/2006) |
| European Sound standard | ISO 15744 |
| European Standards | EN ISO 11148-6:2012 |
| Free speed | 5200 rpm |
| Length | 520 mm |
| Maximum Torque (reverse) | 2600 Nm |
| Min. hose size | 13 mm |
| Net weight | 11.6 kg |
| Over carton | 670*245*130 mm |
| Power/weight ratio | 257.4 Nm/kg |
| Sound Power | 111 db(A) |
| Sound pressure | 100 db(A) |
| Sound uncertainty | 3 db(A) |
| Square drive | 1 " |
| Vibration | 7.8 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 1.8 m/s² |
| Working Torque Range (fwd) | 500 Nm |
