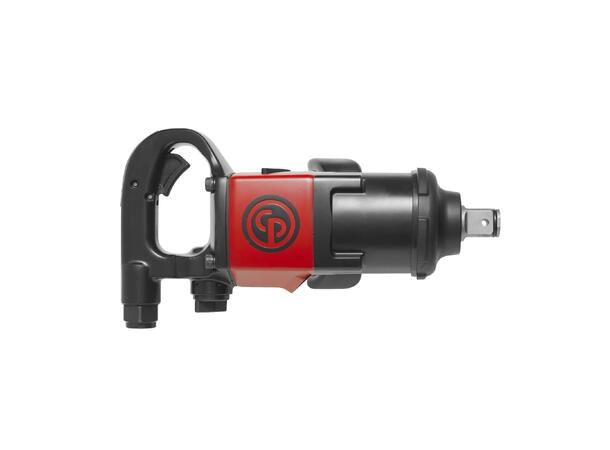

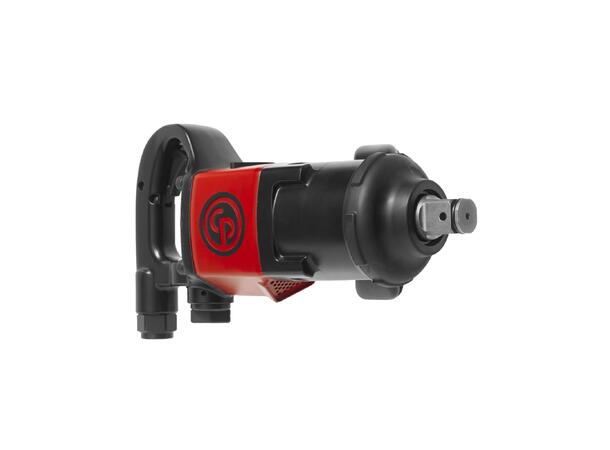

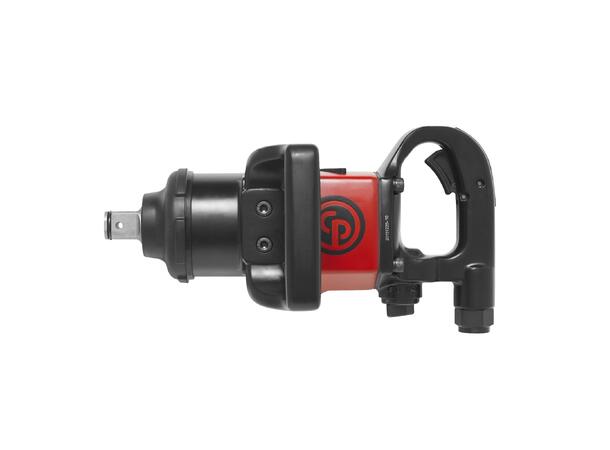

CP7783 Muttertrekker 1"
Lightweight, Powerful and SUPER Durable
Benefits
Powerful
Lightweight
SUPER Durability
Operator Comfort & Easy to Use
User Friendly
Convenient
Useful
Shock Absorbing
Features
1770 ft.lbs / 2400 Nm max torque in reverse for high productivity
18.5 lbs. / 8.4 kg for reduced operator fatigue
Pinless closed reinforced rocking dog mechanism
Features an adjustable top or down exhaust
Regulator integrated in forward/reverse button with 3 power settings in both directions
Top or down exhaust, easy and quick to change
Four positions for D-handle placement to provide ultimate operator comfort
Forward/Reverse regulator with 3 power settings in both directions
Rubber bumper protecting both applications & tool (included)
| Model | CP7783 |
| Part number | 8941077830 |
| Actual air consumption | 19 l/s |
| Air inlet thread size | 1/2 " |
| Average air consumption | 4.75 l/s |
| Clutch type | Pin less closed rocking dog |
| Free speed | 6200 rpm |
| Handle type | D-Handle Inside Trigger |
| Length | 350 mm |
| Maximum Torque (reverse) | 2400 Nm |
| Min. hose size | 19 mm |
| Net weight | 8.4 kg |
| Socket retainer | Ring & hole |
| Sound DBA pressure | 102 db(A) |
| Sound Power | 113 db(A) |
| Square drive | 1 " |
| Vibration | 15.1 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 4.1 m/s² |
| Working Torque Range (fwd) | 560 - 1700 Nm |
