CP7830HQ Luftskralle, 1/2"

Bil, last og anlegg, 122Nm, demp

Varenr: 8941078308
BeskrivelseTeknisk infoSupport
Beskrivelse

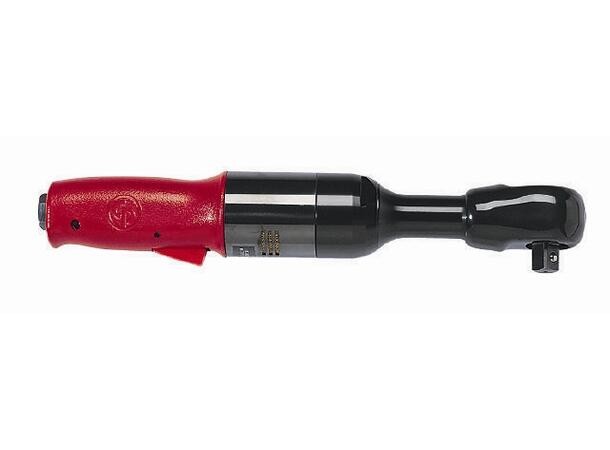

CP7830HQ Luftskralle

Støydempet, kraftig luftskralle med hele 122 Nm. Seigdragende med patentert hode

Benefits

Ratchet for general maintenance applications
High torque & durable
Light weight and well balanced tool

Features

1/2" high power ratchet
Adjustable side exhaust, low noise
Progressive tease throttle
Highest torque on the market: 90 ft.lbs (122 Nm)
Grease fitting on the reverse button
Sturdy aluminum alloy head
Features CP's patented TriSpring anti-slip head design with protective head cover

ModelCP7830HQ
Part number8941078308
Actual air consumption524 l/mn
Air inlet thread size1/4 "
Average air consumption141 l/mn
Free speed190 rpm
Length305 mm
Max torque122 Nm
Min. hose size10 mm
Net weight1.2 kg
Sound DBA pressure96 db(A)
Sound pressure85 db(A)
Square drive1/2 "
Vibration4.1 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)1.4 m/s²
Working torque Range13 - 122 Nm





Teknisk info

Produktinformasjon

Gruppe 1 Verktøyteknikk
Gruppe 2 Chicago Pneumatic VS
Gruppe 3 Luftskralle
Produsent Chicago Pneumatic
