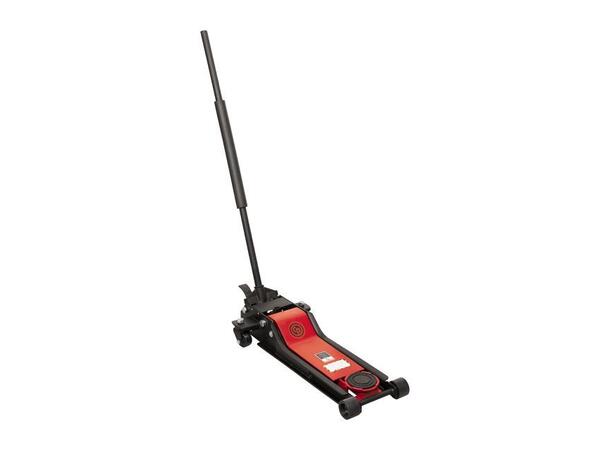

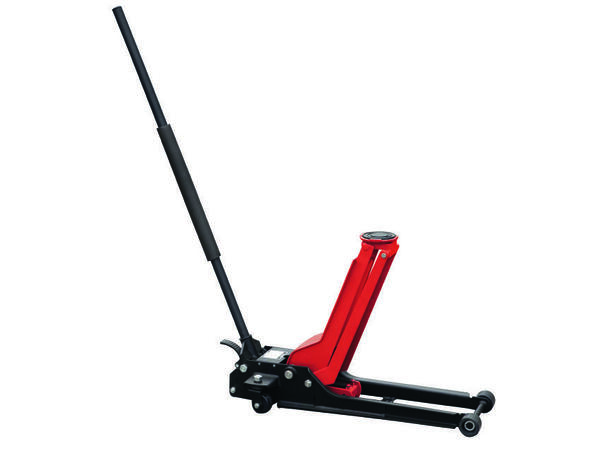

CP80015
Garasjejekk - veldig lav profil
CP80015 er en garasjejekk for dem som krever en
jekk med veldig lav profil.
Med en sammenslått høyde på kun 70mm kommer den
greit under de fleste utfordringer den trengs til.
Robuste hjul og effektiv hydraulisk pumpe gjør at
dette til en super jekk i 1,5 tonns klassen
Benefits
Robust & Durable
Quick lifting
Comfort
Easy to use
Features
Heavy duty steel welded chassis
with reinforcing rims
Two pumps & one foot pedal for fast approach without load
Handle with protector sponge & soft rubber pad on the saddle plate
Turning handle for easy release of load
Low profile construction
Low noise & smooth to floor tiles due to oil and acid resistant plastic
wheels
|
| Model | CP80015 | |
| Part number | 8941081015 | |
| Description | 1.5T / 1.62ST capacity Deep and low profile Very high lifting at 620mm Double piston pump system Lifting with foot pedal or handle Oil and acid resistant nylon wheels | |
| Capacity | 1 1/2 ton(s) | 2.2 short ton(s) |

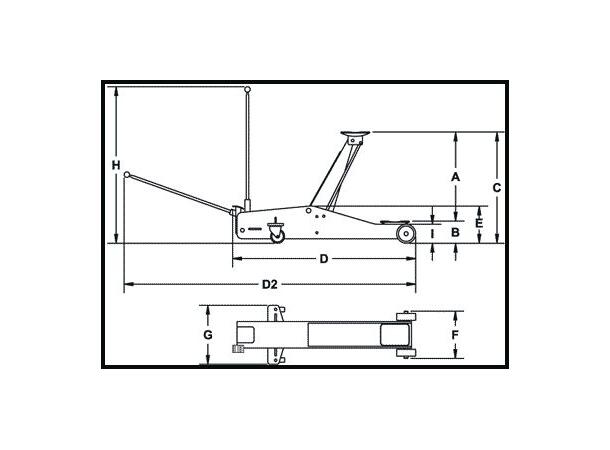

| Dimension A | 620 mm | 24.4 " |
| Dimension B | 70 mm | 2 3/4 " |
| Dimension C | 540 mm | 21.3 " |
| Dimension D | 920 mm | 36.2 " |
| Dimension D2 | 2140 mm | 84.3 " |
| Dimension E | 153 mm | 6.02 " |
| Dimension F | 282 mm | 11.1 " |
| Dimension F1 | 382 mm | 15 " |
| Dimension F2 | Nylon mm | |
| Dimension G | | 50.5 " |
| Dimension M | 111.3323 mm |
