73429

CP825CT Skralle 3/8"

Bil og karosseri, std bruk 20Nm

Varenr: 8941082512
BeskrivelseTeknisk infoSupport
Beskrivelse

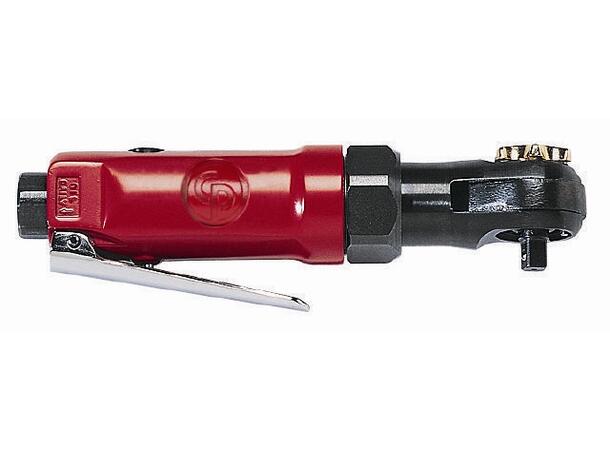

CP825CT Luftskralle



Liten luftskralle for mindre montering og demonteringsoppgaver

Benefits

High comfort
High speed
Better handling
Operator friendly
Better speed control
High accessibility to tight spaces
Higher durability
Useful
Convenient
Lightweight

Features

Aluminum body with composite housing to insulate from cold
Fast rundown 280 RPM
Short & Wide lever
Back exhaust avoids blowing dirt and dust
New power easy-to-use regulator to regulate speed from zero to max speed
Flat forward and reverse button
Improved head material
Head composite protective cover supplied with the tool
Shank with ball retainer
1.1 lbs. – 0.5 kg

ModelCP825CT
Part number8941082512
Actual air consumption438 l/mn
Air inlet thread size1/4 "
Average air consumption88 l/mn
Box dimensions50x110x190 mm
European Directives2006/42/EC (17/05/2006)
European Sound standardISO-15744
European StandardsEN ISO 11148-6:2012
Free speed280 rpm
Height37 mm
Length169 mm
Max torque35 Nm
Min. hose size10 mm
Net weight1/2 kg
Over carton280x230x400 mm
Side to center19 mm
Sound DBA pressure82 db(A)
Sound Power93 db(A)
Sound pressure82 db(A)
Sound uncertainty3 db(A)
Square drive3/8 "
Vibration4 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)1 1/2 m/s²
Width38 mm
Working torque Range5 - 25 Nm


Teknisk info

Produktinformasjon

Gruppe 1 Verktøyteknikk
Gruppe 2 Chicago Pneumatic VS
Gruppe 3 Luftskralle
Produsent Chicago Pneumatic
