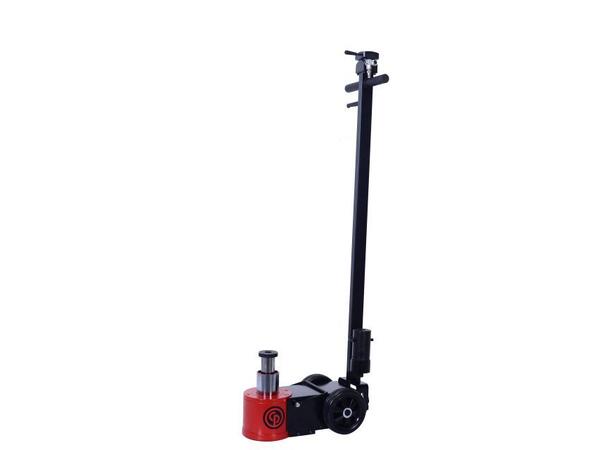

CP85030 Luft-Hydraulisk Jekk
Benefits
High Lifting Capacity
High Durability
Fast and easy operation controlled from the handle
Low Profile
Convenient
Easy maneuvering and to transport
Safety
Features
Maximum height: 16.1 in. / 409 mm
Air powered piston
Includes 2 extensions for higher lifting - Stored on handle for transport
Piston and pump
Anti dust seals
Ideal for easily accessing lifting points on low chassis trucks and buses
Convenient joystick controls
Cylinder mounted carrying handle
4 ¼ ft./ 1.3 m / long handle bar (1 piece handle) allows easy access to
controls when fully positioned under vehicle
Handle bar locks in 3 positions: 45°, 90° & 180°
Large & soft rubber wheels
| Model | CP85030 |
| Part number | 8941085030 |
| Description | CP85030 AIR HYDRAULIC JACK - 30 tons |
| Box dimensions | 520X290X210 1390X280X110 mm |
| Capacity | 30 / 15 ton(s) |
| Dimension A | 150 mm |
| Dimension B | 176 mm |
| Dimension C | 290 mm |
| Dimension D | 240 mm |
| Dimension D+E | 326 mm |
| Dimension E | 86 mm |
| Dimension F | 223/289 mm |
| Dimension G | 1365 mm |
| Dimension P | 71 mm |
| Net weight | 38 kg |
| UPC Code | 015451767945 |
| Wheel type | Rubber |
