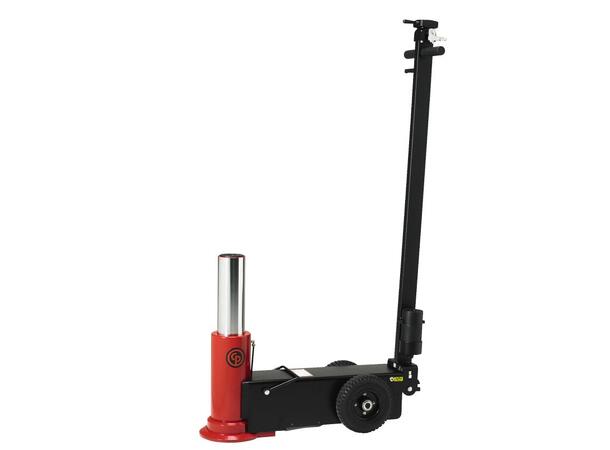

CP85031 Luft-Hydraulisk Jekk 30T
Benefits
High lifting capacity
Premium quality
Easy to transport
High stability
Easy to use
Easy maneuvering
Features
30.4 in / 772mm of maximum height.
Two extensions of 1.77 in / 45mm and 3.94 in / 100mm.
US manufactured pressure joint.
Heavy-duty piston and pump.
Anti dust seals.
Auxiliary carrying handle for picking up the tool.
Large base.
Convenient joystick controls.
Swivel air coupling supplied with the jack.
54.33 in / 1.38 m long handle bar allows easy access to controls when fully
positioned under vehicle.
Handle bar adjustable in 3 positions: 0° - 45° - 90°.
Large & soft rubber wheels.

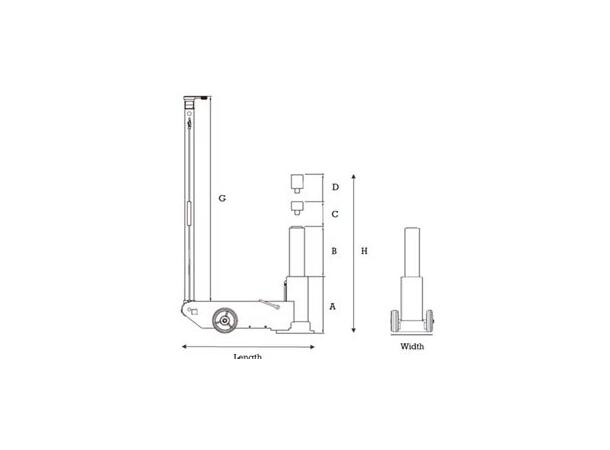

| Model | CP85031 |
| Part number | 8941085031 |
| Capacity | 30 ton(s) |
| Dimension A | 360 mm |
| Dimension B | 267 mm |
| Dimension C | 45 mm |
| Dimension D | 100 mm |
| Dimension D+E | 840 mm |
| Dimension G | 1380 mm |
| Dimension H | 772 mm |
| Dimension P | 85 mm |
| Length | 840 mm |
| Net weight | 87 kg |
| Width | 282 mm |
