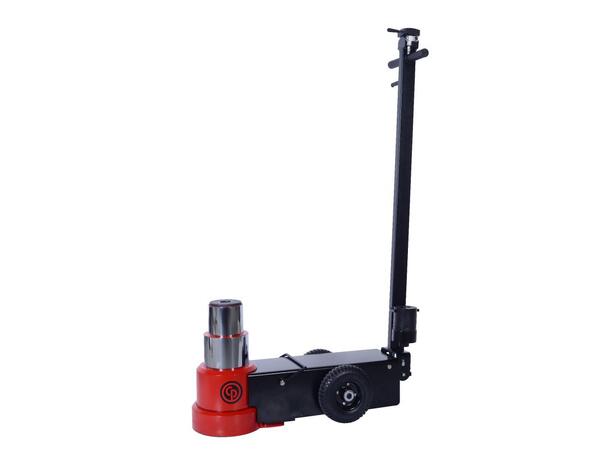

CP85080 Luft-Hydraulisk Jekk
Benefits
High Lifting Capacity
High Durability
Fast and easy operation controlled from the handle
Low Profile
Convenient
Easy maneuvering and to transport
Safety
Features
Maximum height: 22.16 in. / 563 mm
Air powered piston
Includes 2 extensions for higher lifting - Stored on handle for transport
Piston and pump
Anti dust seals
Ideal for easily accessing lifting points on low chassis trucks and buses
Convenient joystick controls
Cylinder mounted carrying handle
4 ¼ ft./ 1.3 m / long handle bar (1 piece handle) allows easy access to
controls when fully positioned under vehicle
Handle bar locks in 3 positions: 45°, 90° & 180°
Large & soft rubber wheels
| Model | CP85080 |
| Part number | 8941085080 |
| Description | CP85080 AIR HYDRAULIC JACK - 80 tons |
| Box dimensions | 940X380X300 1640X290X130 mm |
| Capacity | 80/50 ton(s) |
| Dimension A | 230 mm |
| Dimension B | 254 mm |
| Dimension C | 340 mm |
| Dimension D | 415 mm |
| Dimension D+E | 520 mm |
| Dimension E | 105 mm |
| Dimension F | 341/443 mm |
| Dimension G | 1610 mm |
| Dimension P | 82 mm |
| Net weight | 103 kg |
| UPC Code | 015451767976 |
| Wheel type | Rubber |
