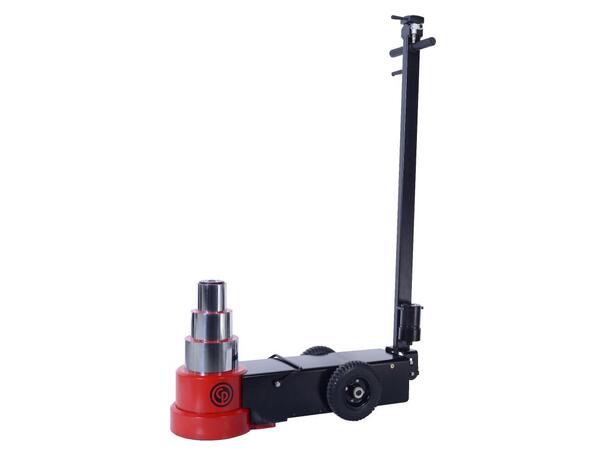

CP85100 Luft-Hydraulisk Jekk
Benefits
High Lifting Capacity
High Durability
Fast and easy operation controlled from the handle
Low Profile
Convenient
Easy maneuvering and to transport
Safety
Features
Maximum height: 24.00 in. / 610 mm
Air powered piston
Includes 2 extensions for higher lifting - Stored on handle for transport
Piston and pump
Anti dust seals
Ideal for easily accessing lifting points on low chassis trucks and buses
Convenient joystick controls
Cylinder mounted carrying handle
4 ¼ ft./ 1.3 m / long handle bar (1 piece handle) allows easy access to controls
when fully positioned under vehicle
Handle bar locks in 3 positions: 45°, 90° & 180°
Large & soft rubber wheels
|
| Model | CP85100 | |
| Part number | 8941085100 | |
| Description | CP85100 AIR HYDRAULIC JACK - 100 tons | |
| Box dimensions | 1000X330X200 1640X290X130 mm | 39.4X13.0X7.9 64.6X11.4X5.1 " |
| Capacity | 100/60/33 ton(s) | 110.2 short ton(s) |
| Dimension A | 215 mm | 8.46129032258064 " |
| Dimension B | 209 mm | 10.8 " |
| Dimension C | 341 mm | 13.4917391304348 " |
| Dimension D | 723 mm | 28.5068571428571 " |
| Dimension D+E | 860 mm | 33.8787878787879 " |
| Dimension E | 137 mm | 5.37851851851852 " |
| Dimension F | 313/403/490 mm | 12.3/15.8/19.3 " |
| Dimension G | 1600 mm | 63.0153846153846 " |
| Dimension P | 70 mm | 2.75692307692308 " |
| Net weight | 105 kg | 231.5 lb |
| UPC Code | 015451770150 | |
| Wheel type | Rubber |
