CP8528 TOOL DRILL 12V 3/8"

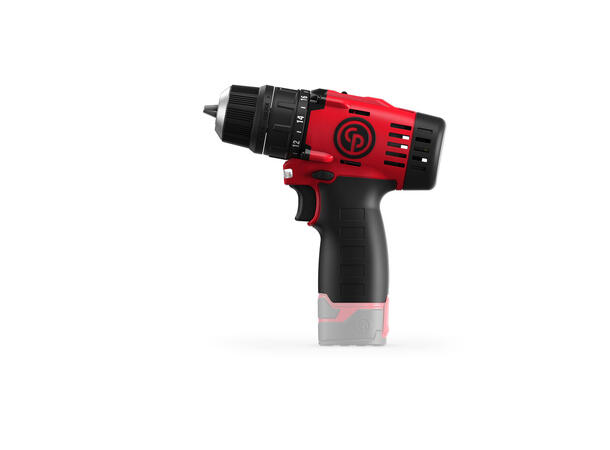

CORDLESS DRILL_CP8528 BARE TOOL

Varenr: 8941085289
BeskrivelseTeknisk infoSupport
Beskrivelse

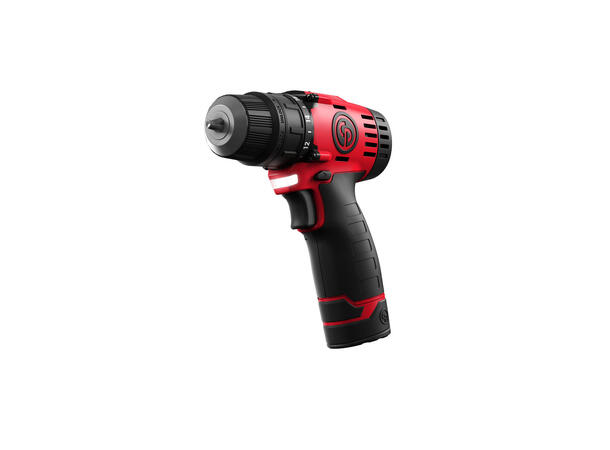

CP8528 Drill



Ultra compact and lightweight



Benefits

Ultra compact
LED lighting for dimly lit work areas
Ergonomic handle fits your hand perfectly

Features

3/8" spindle lock and keyless chuck
Max. torque: 24 ft.lbs/34 Nm
Variable speed trigger
12-Volt CP12XP Lithium-ion 1.5Ah battery (Not included with bare tool)

ModelCP8528
Part number8941085289
Battery type1,5Ah 12V Lithium-ion
Battery voltage12 V
Chuck size1.5 - 10 mm mm
Drilling capacity in brick & tile10 mm
Drilling capacity in steel10 mm
Drilling capacity in wood20 mm
European DirectivesMachinery (2006/42/EC), RoHs (2011/65/EU), EMC (2014/30/EU)
European Sound standardEN62841
European StandardsEN 62841-1:2015; EN 62841-2-1:2018; EN 55014-1:2017; EN 55014-2:2015; EN50581:2012
Free speed0 - 1500 rpm rpm
Free speed 1st gear0 - 350 rpm rpm
Free speed 2nd gear0 - 1500 rpm rpm
Length175 mm
Max torque34 Nm
Net weight1.2 kg
Sound Power80 db(A)
Sound pressure69 db(A)
Sound uncertainty3 db(A)
Square drive10 mm
Stall torque34 Nm
Vibration ISOEN62841
Vibration drilling into metal1.1 m/s²
Vibration screwing0.4 m/s²
Vibration uncertainty (K)1 1/2 m/s²
Weight without battery1 kg
Wood screws (without pre-drilling)6 mm
