CP86100 Verkstedpresse 100T

Varenr: 8941086100
BeskrivelseTeknisk infoSupport
Beskrivelse

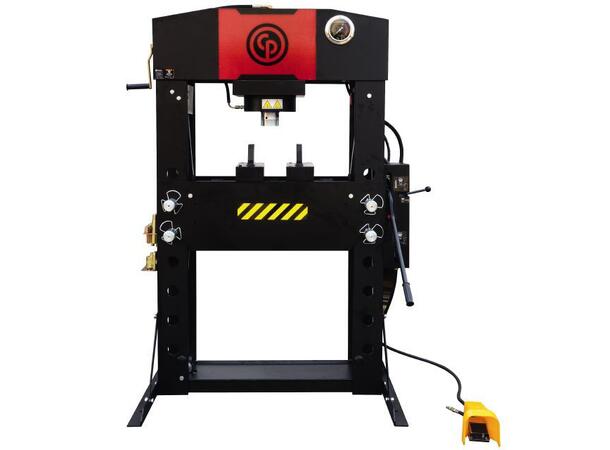

CP86100 Verkstedpresse

Benefits

Fast & Easy Work
High stability
Durable & sturdy
Precision
Easy control
Stable
Comfort
CE & ASME certified

Features

Pneumatic pump driven by foot
2 holes in each foot to fix in the floor
Steel frame
2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine tuning of the load
Large gauge measuring short and metric tons
Delivered with 2 V blocks
Easy to use handle with rubber grip
Delivered with a quick chuck and 8 punches

ModelCP86100
Part number8941086100
DescriptionCP86100 workshop press
Capacity100 ton(s)110.24 short ton(s)

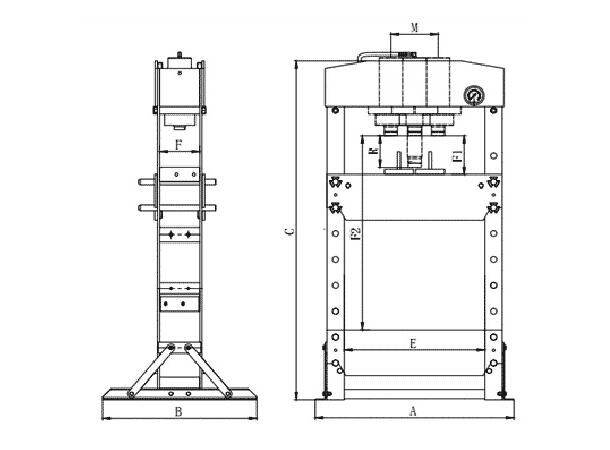

Dimension A1200 mm47.3 "
Dimension B900 mm35.4 "
Dimension C1830 mm72 "
Dimension E787 mm30.9 "
Dimension F300 mm11.7 "
Dimension F1114 mm4.5 "
Dimension F2814 mm32.1 "
Dimension M235 mm9.2 "
Dimension R300 mm11.9 "
European StandardsEN 693:2001 + A2:2011
Net weight766 kg1688.8 lb
Oil capacity5.6 ml









Teknisk info

Produktinformasjon

Gruppe 1 Verktøyteknikk
Gruppe 2 Chicago Pneumatic VS
Gruppe 3 Verkstedutstyr
Produsent Chicago Pneumatic
