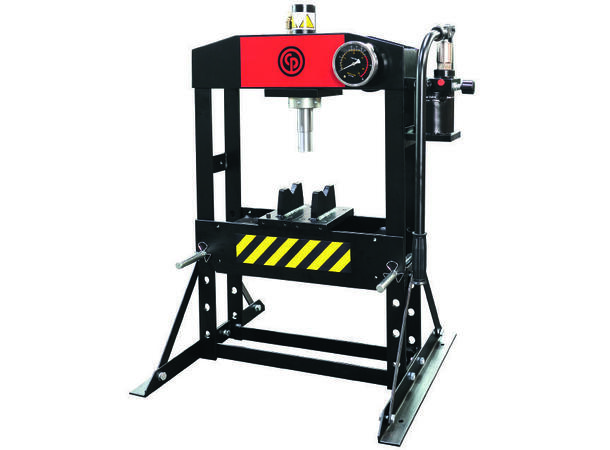

2 holes in each foot to fix in the floor
Steel frame
2 step stroke system
Closed: Full stroke for quick approach.
Open: Small stroke for fine tuning of the load
Large gauge measuring short and metric tons
Delivered with 2 V blocks
Easy to use handle with rubber grip
Part number 8941086150
Model CP86150
Capacity 15 ton(s) 16.53 short ton(s)

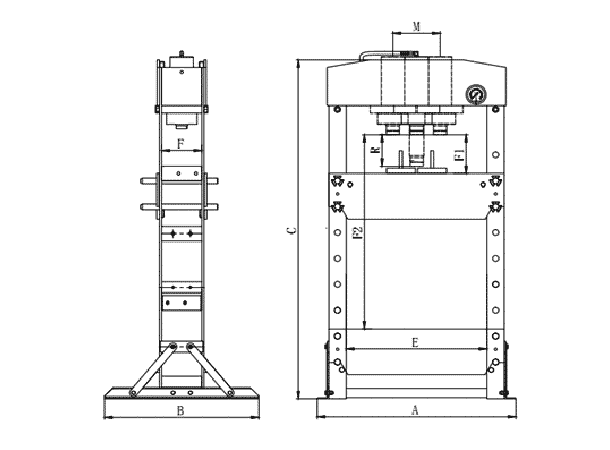

Dimension A 700 mm 27.6" Dimension
B 540 mm 21.3" Dimension
C 882 mm 34.7" Dimension
E 500 mm 19.7" Dimension
F 120 mm 4.7" Dimension
F1 157 mm 6.2" Dimension
F2 457 mm 18" Dimension
R 160 mm 6.3"
Net weight 75.5 kg 166.4 lb
Length 166.4 mm 75.5"
Oil capacity 0.6 ml
