CP86200 Verkstedpresse 20T

Varenr: 8941086200
BeskrivelseTeknisk infoSupport
Beskrivelse

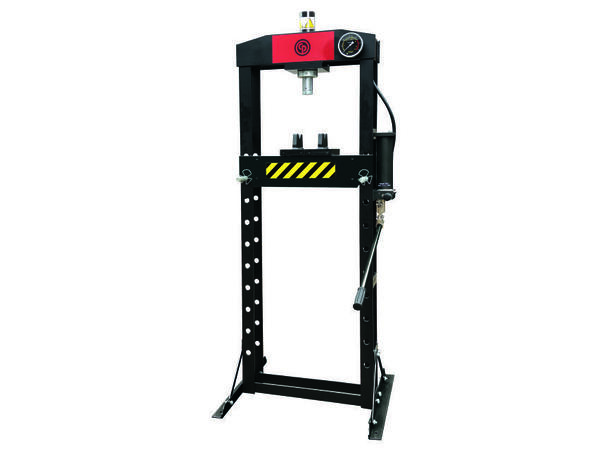

CP86200 Verkstedpresse

Benefits

High stability
Durable & sturdy
Precision
Easy control
Stable
Comfort

Features

2 holes in each foot to fix in the floor
Steel frame
2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine tuning of the load
Large gauge measuring short and metric tons
Delivered with 2 V blocks
Easy to use handle with rubber grip

ModelCP86200
Part number8941086200
DescriptionCP86200 workshop press
Capacity20 ton(s)22.05 short ton(s)

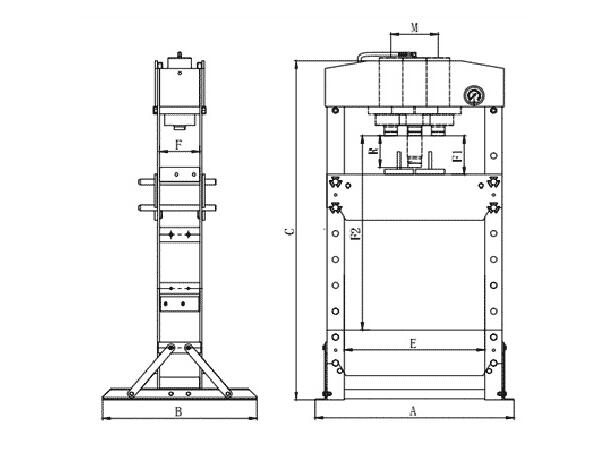

Dimension A740 mm29.1 "
Dimension B700 mm27.6 "
Dimension C1772 mm69.8 "
Dimension E510 mm20.1 "
Dimension F132 mm5.2 "
Dimension F1185 mm7.3 "
Dimension F21175 mm46.3 "
Dimension R186 mm7.3 "
European StandardsEN 693:2001 + A1 + A2
Length231.5 mm105 "
Net weight105 kg231.5 lb
Oil capacity0.95 ml






Teknisk info

Produktinformasjon

Gruppe 1 Verktøyteknikk
Gruppe 2 Chicago Pneumatic VS
Gruppe 3 Verkstedutstyr
Produsent Chicago Pneumatic
