CP86300 Verkstedpresse 30T

Varenr: 8941086300
BeskrivelseTeknisk infoSupport
Beskrivelse

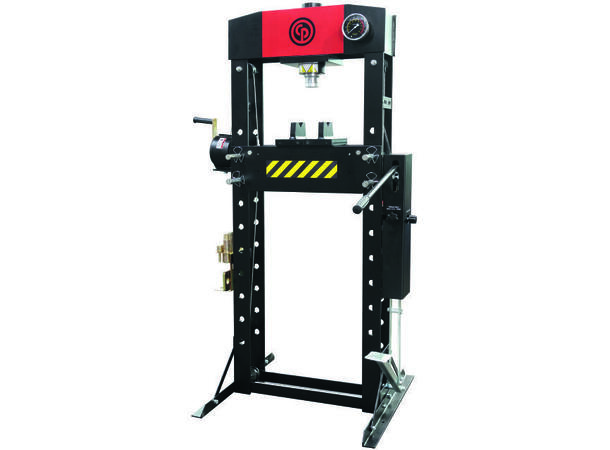

CP86300 Verkstedpresse

Benefits

High stability
Durable & sturdy
Precision
Easy control
Stable
Comfort

Features

2 holes in each foot to fix in the floor
Steel frame
2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine tuning of the load
Large gauge measuring short and metric tons
Delivered with 2 V blocks
Easy to use handle with rubber grip
Delivered with a quick chuck and 8 punches



ModelCP86300
Part number8941086300
DescriptionCP86300 workshop press
Capacity30 ton(s)33.07 short ton(s)

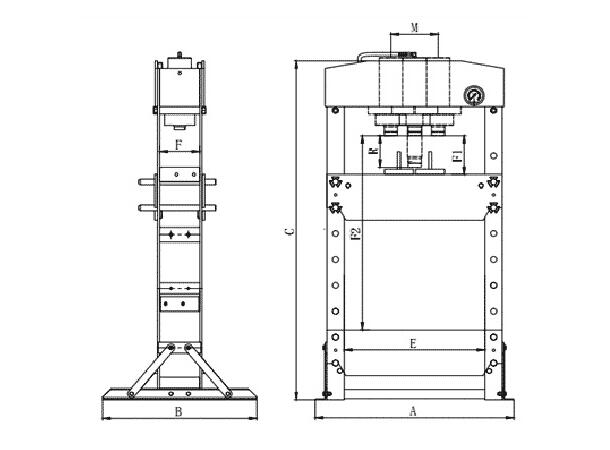

Dimension A795 mm31.3 "
Dimension B700 mm27.6 "
Dimension C1772 mm69.8 "
Dimension E535 mm21.1 "
Dimension F140 mm5 1/2 "
Dimension F1151 mm5.9 "
Dimension F21031 mm40.6 "
Dimension M200 mm7.9 "
Dimension R160 mm6.3 "
European StandardsEN 693:2001 + A1 + A2
Length368.2 mm167 "
Net weight167 kg368.2 lb
Oil capacity1.1 ml






Teknisk info

Produktinformasjon

Gruppe 1 Verktøyteknikk
Gruppe 2 Chicago Pneumatic VS
Gruppe 3 Verkstedutstyr
Produsent Chicago Pneumatic
