CP86500 Verkstedpresse 50T

Varenr: 8941086500
BeskrivelseTeknisk infoSupport
Beskrivelse

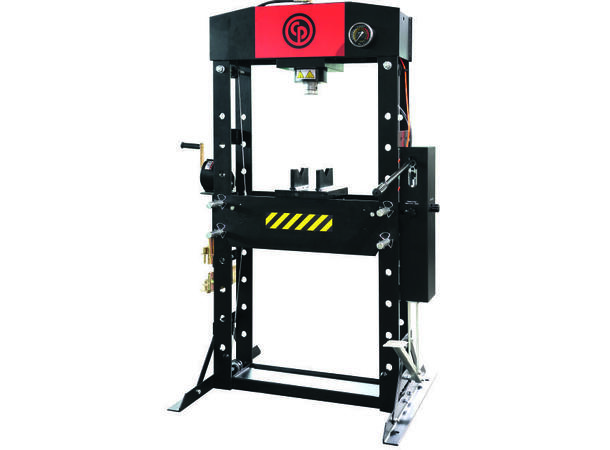

CP86500 Verkstedpresse

Benefits

High stability
Durable & sturdy
Precision
Easy control
Stable
Comfort

Features

2 holes in each foot to fix in the floor
Steel frame
2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine tuning of the load
Large gauge measuring short and metric tons
Delivered with 2 V blocks
Easy to use handle with rubber grip
Delivered with a quick chuck and 8 punches

ModelCP86500
Part number8941086500
DescriptionCP86500 workshop press
Capacity50 ton(s)55.12 short ton(s)

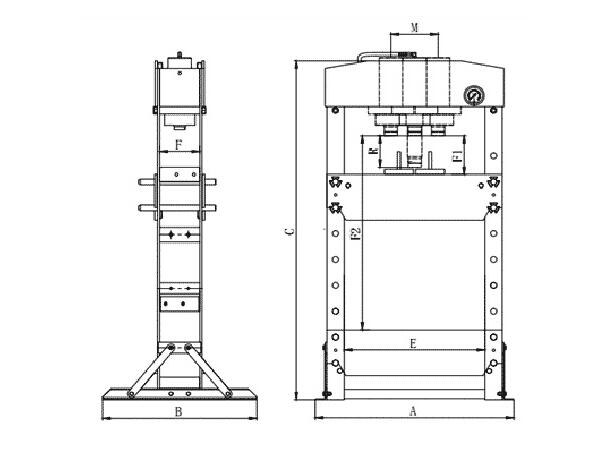

Dimension A1030 mm40.6 "
Dimension B800 mm31.5 "
Dimension C1830 mm72 "
Dimension E730 mm28.7 "
Dimension F207 mm8.1 "
Dimension F168 mm2.7 "
Dimension F21048 mm41.3 "
Dimension M245 mm9.6 "
Dimension R200 mm7.9 "
European StandardsEN 693:2001 + A1 + A2
Net weight298 kg657 lb
Oil capacity2 1/2 ml










Teknisk info

Produktinformasjon

Gruppe 1 Verktøyteknikk
Gruppe 2 Chicago Pneumatic VS
Gruppe 3 Verkstedutstyr
Produsent Chicago Pneumatic
