CP86750 Verkstedpresse 75T

Varenr: 8941086750
BeskrivelseTeknisk infoSupport
Beskrivelse

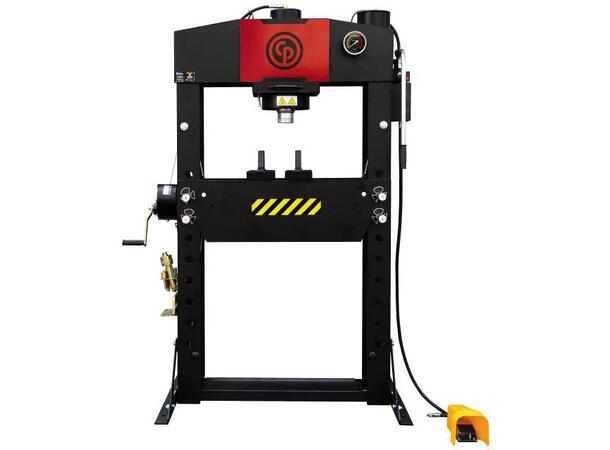

CP86750 Verkstedpresse

Benefits

Fast & Easy Work
High stability
Durable & sturdy
Precision
Easy control
Stable
Comfort
CE & ASME certified

Features

Pneumatic pump driven by foot
2 holes in each foot to fix in the floor
Steel frame
2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine tuning of the load
Large gauge measuring short and metric tons
Delivered with 2 V blocks
Easy to use handle with rubber grip
Delivered with a quick chuck and 8 punches

ModelCP86750
Part number8941086750
DescriptionCP86750 workshop press
Capacity75 ton(s)82.68 short ton(s)

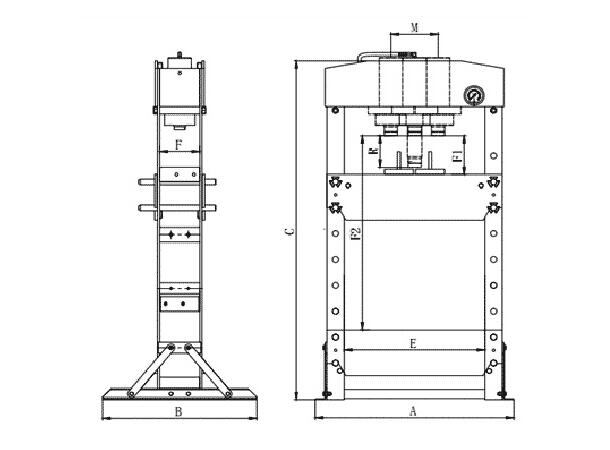

Dimension A1140 mm44.9 "
Dimension B800 mm31.5 "
Dimension C1840 mm72.4 "
Dimension E800 mm31.5 "
Dimension F245 mm9.6 "
Dimension F1170 mm6.8 "
Dimension F2884 mm34.8 "
Dimension M260 mm10.2 "
Dimension R250 mm9.9 "
European StandardsEN 693:2001 + A2:2011
Net weight498 kg1097.9 lb
Oil capacity4.5 ml









Teknisk info

Produktinformasjon

Gruppe 1 Verktøyteknikk
Gruppe 2 Chicago Pneumatic VS
Gruppe 3 Verkstedutstyr
Produsent Chicago Pneumatic
