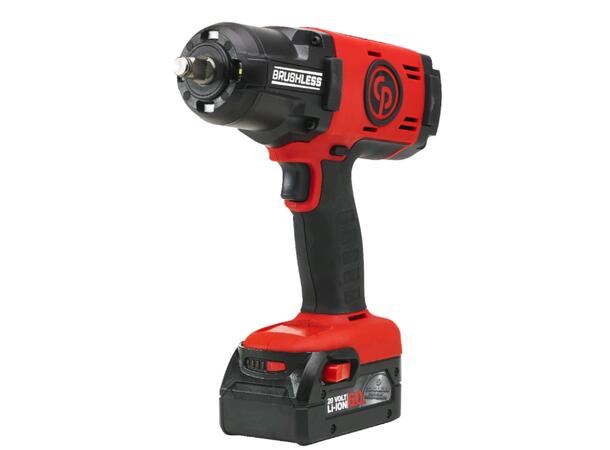

CP8849 Muttertrekker, pack
6.0Ah
Benefits
Unique
2 shut off positions
Powerful
High resistance to drop
High durability
Convenient
SIDE2SIDE
High Comfort
Features
4 settings in forward, to be set
up with the touch pad on the back side of the tool
- Slow mode to approach without impacting (hand tightening around 3.7 ft.lbs /
4-5 Nm)
- Fast mode to tighten wheels close to recommended torque without
overtightening (around 50 ft.lbs / 70 Nm)
50%: around 425 ft.lbs / 580 N
100% of maximum torque around 850+ ft.lbs / 1150+ Nm
1 setting @ full power in reverse 850+ ft.lbs / 1150+ Nm
5 bumpers all around the tool, 1 in front of the clutch housing
Brushless motor

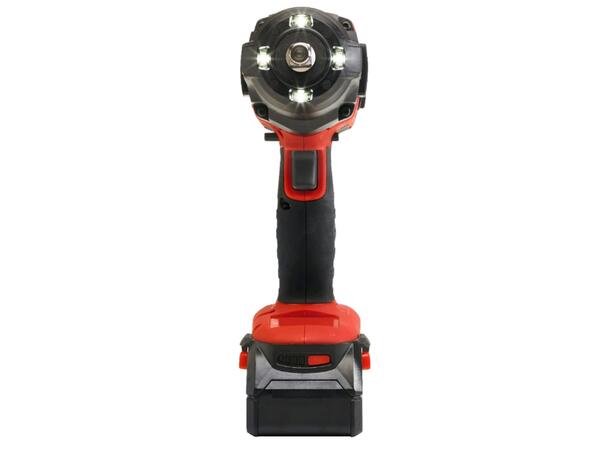

4 Front LED lights for dark spaces
Single-hand Forward and Reverse operation plus Safety locking position
Soft thermoplastic rubber grip
The CP8849 Series is to be used as a « snugging » tool to come close
to the car manufacturer’s specified torque rating. The final tightening should
be done with a calibrated torque wrench, this way, we ensure the end of
overtightening.
Torque results could vary greatly depending on the type of wheel and many other
factors.

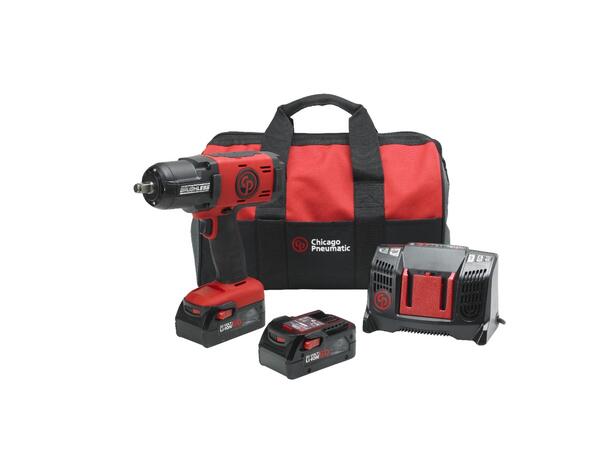

Content of the pack
One CP8849
Two 6.0 Ah battery packs
One 20V charger
One Chicago Pneumatic soft bag
One appropriate plug based on the country of origin of the order
Model | CP8849 Pack 6.0Ah |
Part number | 8941088492 |
Ah | 6 Ah |
Battery voltage | 20 V |
Blows per minute | 2300 |
European Directives | Machinery (2006/42/EC), EMC(2014/30/EU), RoHs (2011/65/EU) |
European Sound standard | EN 62841 |
European Standards | EN 60745-1:2009 + A11:2010, EN 60745-2-2:2010, EN 55014-1:2017, EN 55014-2:2017, EN50581-1:2012 |
Free speed | 1800 rpm |
Free speed position 1 | 600 rpm |
Height | 224 mm |
Length | 252 mm |
Maximum Torque (reverse) | 1150 Nm |
Net weight | 3.61 kg |
Number of positions | 4 |
Sound Power | 112.5 db(A) |
Sound pressure | 101.5 db(A) |
Sound uncertainty | 3 db(A) |
Square drive | 1/2 " |
Vibration | 16.1 m/s² |
Vibration ISO | ISO-28927-2 |
Vibration uncertainty (K) | 1 1/2 m/s² |
Weight without battery | 2.885 kg |
Width | 84 mm |
