CP8849-2 Pack 4.0Ah

Varenr: 8941088494
BeskrivelseTeknisk infoSupport
Beskrivelse

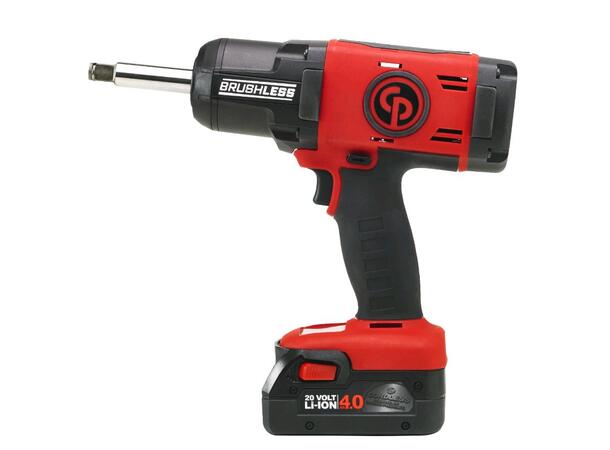

CP8849-2 Muttertrekker med lang drivtapp, pack 4.0Ah







Benefits

Unique
2 shut off positions
Powerful
High resistance to drop
High durability
Convenient
SIDE2SIDE
High Comfort

Features

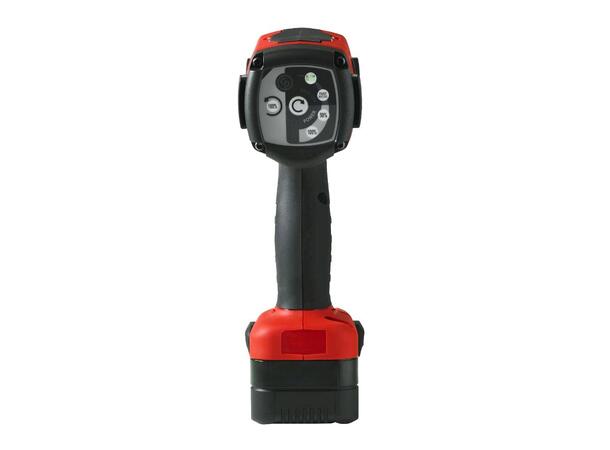

4 settings in forward, to be set up with the touch pad on the back side of the tool
- Slow mode to approach without impacting (hand tightening around 3.7 ft.lbs / 4-5 Nm)
- Fast mode to tighten wheels close to recommended torque without overtightening (around 50 ft.lbs / 70 Nm)
50%: around 425 ft.lbs / 580 N
100% of maximum torque around 850+ ft.lbs / 1150+ Nm
1 setting @ full power in reverse 850+ ft.lbs / 1150+ Nm
5 bumpers all around the tool, 1 in front of the clutch housing
Brushless motor

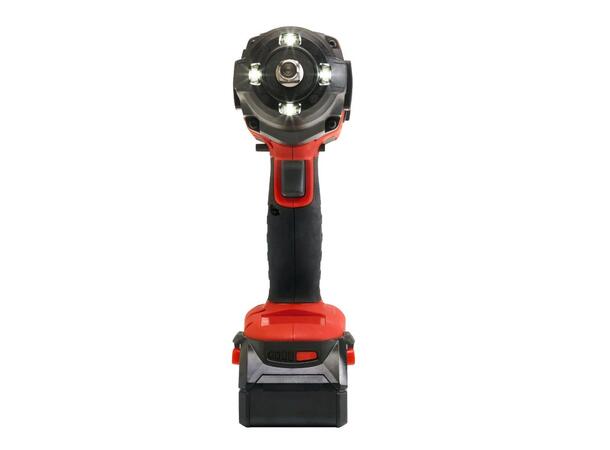

4 Front LED lights for dark spaces
Single-hand Forward and Reverse operation plus Safety locking position
Soft thermoplastic rubber grip
The CP8849 Series is to be used as a « snugging » tool to come close to the car manufacturer’s specified torque rating. The final tightening should be done with a calibrated torque wrench, this way, we ensure the end of overtightening.
Torque results could vary greatly depending on the type of wheel and many other factors.

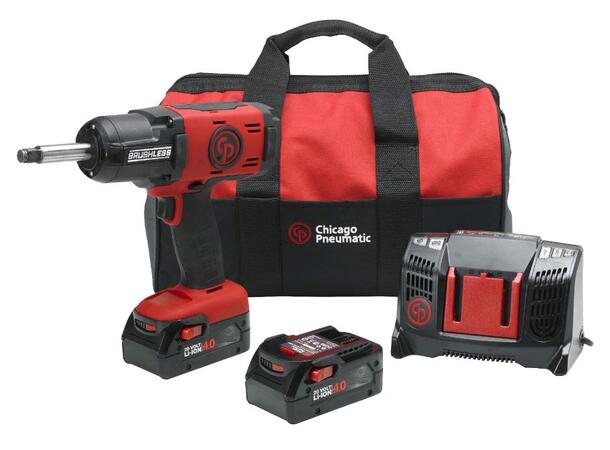

Content of the pack

One CP8849-2
Two 4.0 Ah battery packs
One 20V charger
One Chicago Pneumatic soft bag
One appropriate plug based on the country of origin of the order

ModelCP8849-2 Pack 4.0Ah
Part number8941088494
Ah4 Ah
Battery voltage20 V
Blows per minute2300
European DirectivesMachinery (2006/42/EC), RoHs (2011/65/EU), EMC (2014/30/EU)
European Sound standardEN60745
European StandardsEN 60745-1:2009 + A11:2010, EN 60745-2-2:2010, EN 55014-1:2017, EN 55014-2:2017, EN50581-1:2012
Free speed1900 rpm
Height225 mm
Length0,3 m
Maximum Torque (reverse)1150 Nm
Net weight3.71 kg
Sound Power112.5 db(A)
Sound pressure101.5 db(A)
Sound uncertainty3 db(A)
Square drive1/2 "
Vibration16.1 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)1 1/2 m/s²
Weight without battery2.985 kg
Width84 mm










Teknisk info

Produktinformasjon

Gruppe 1 Verktøyteknikk
Gruppe 2 Chicago Pneumatic VS
Gruppe 3 Batteriverktøy
Produsent Chicago Pneumatic


Support
