CP8849 BARE TOOL MUTTERTREKKER 20V 1/2"

Varenr: 8941088498
BeskrivelseTeknisk infoSupport
Beskrivelse

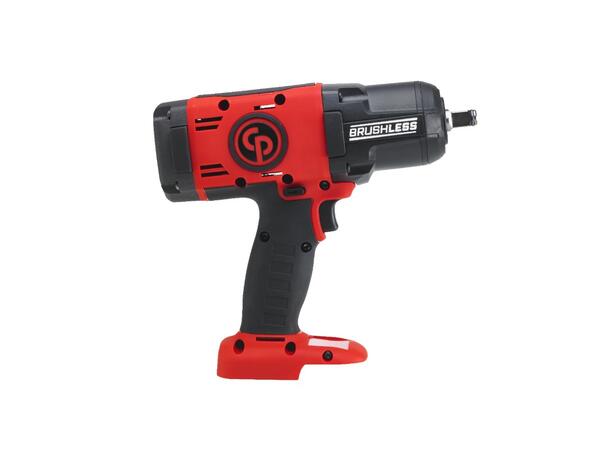

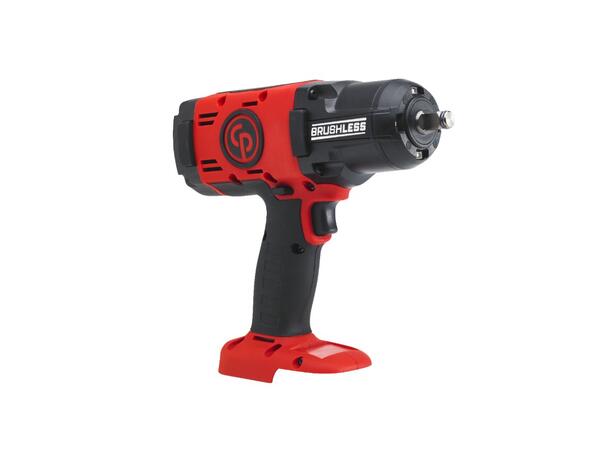

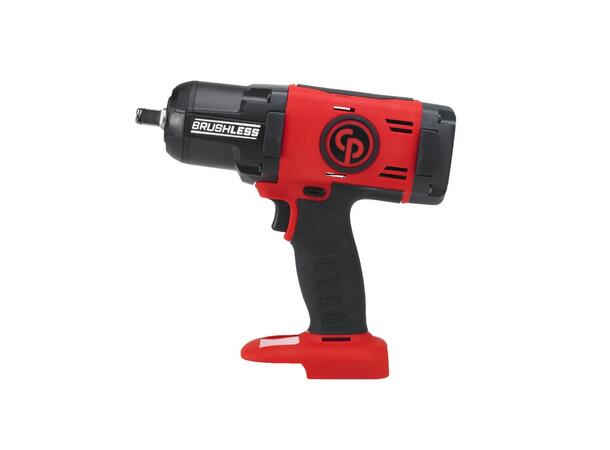

CP8849 Muttertrekker



Benefits

Unique
2 shut off positions
Powerful
High resistance to drop
High durability
Convenient
SIDE2SIDE
High Comfort



Features

4 settings in forward, to be set up with the touch pad on the back side of the tool
- Slow mode to approach without impacting (hand tightening around 3.7 ft.lbs / 4-5 Nm)
- Fast mode to tighten wheels close to recommended torque without overtightening (around 50 ft.lbs / 70 Nm)
50%: around 425 ft.lbs / 580 N
100% of maximum torque around 850+ ft.lbs / 1150+ Nm
1 setting @ full power in reverse 850+ ft.lbs / 1150+ Nm
5 bumpers all around the tool, 1 in front of the clutch housing
Brushless motor
4 Front LED lights for dark spaces
Single-hand Forward and Reverse operation plus Safety locking position
Soft thermoplastic rubber grip

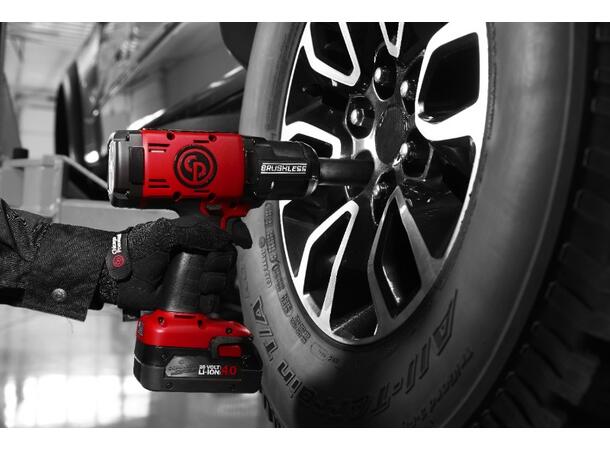

The CP8849 Series is to be used as a « snugging » tool to come close to the car manufacturer’s specified torque rating. The final tightening should be done with a calibrated torque wrench, this way, we ensure the end of overtightening.
Torque results could vary greatly depending on the type of wheel and many other factors.



ModelCP8849
Part number8941088498
Battery voltage20 V
Blows per minute2300
European DirectivesMachinery (2006/42/EC), EMC(2014/30/EU), RoHs (2011/65/EU)
European Sound standardEN 62841
European StandardsEN 62841-1:2015, EN 62841-2-2:2014, EN 55014-1:2017, EN 55014-2:2015, EN50581-1:2012
Free speed1800 rpm
Free speed position 1600 rpm
Free speed position 21200 rpm
Free speed position 31000 rpm
Height225 mm
Length255 mm
Maximum Torque (reverse)1150 Nm
Net weight2.88 kg
Number of positions4
Sound Power112.5 db(A)
Sound pressure101.5 db(A)
Sound uncertainty3 db(A)
Square drive1/2 "
Vibration16.1 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)1 1/2 m/s²
Weight without battery2.88 kg
Width84 mm
